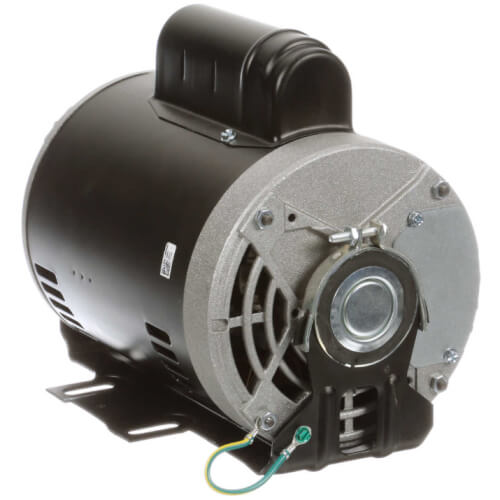

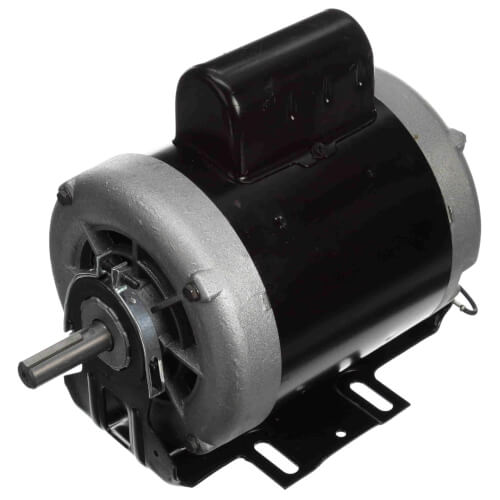

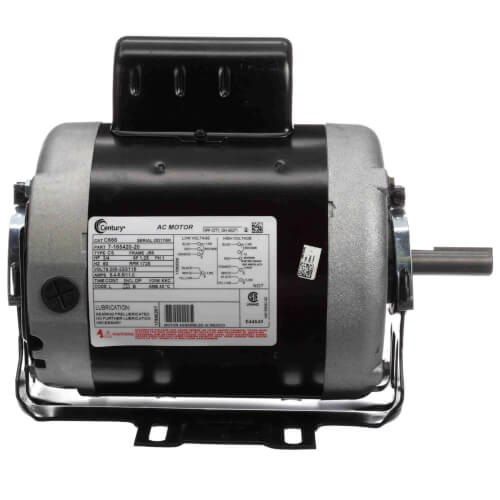

Main product image of 6-1/2" Capacitor Start Resilient Base Motor (208-230/115V, 1725 RPM, 3/4 HP)
Magnifying glass
Hover image to zoom

6-1/2" Capacitor Start Resilient Base Motor (208-230/115V, 1725 RPM, 3/4 HP)

Brand:
Century
SKU:
C666V1
Rating:
(0)
Q&A:
(0)
6-1/2" Capacitor Start Resilient Base Motor (208-230/115V, 1725 RPM, 3/4 HP)
Magnifying glass
Hover image to zoom
$522.93 each
In Stock
In Stock
Get 3 Thu, Jul 9
Order by today, receive Thursday
This item replaces: C666
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208-230/115V
Product Highlight: RPM
1725 RPM
Product Highlight: Rotation
RCW
Product Highlight: Horse Power
3/4 HP
Product Highlight: Mount
Cushion Base
Product Highlight: Amperage
11 Amps

Description

–
6-1/2" Capacitor Start Resilient Base Motor (208-230/115V, 1725 RPM, 3/4 HP)

Product Features
  • Reversible
  • 40 Degrees C Ambient
  • 60 Hz
  • 3/4 HP
  • 1725 RPM
  • 208-230/115 Volt
  • 5.4-5.5/11.0 Full Load Amps
  • 56 Frame
  • Shaft (In.): 5/8 x 1.875
  • Ball Bearing
  • Service Factor: 1.25
  • None Protector
  • Insulation Class B
  • Open D.P. Enclosure

Specs

–
Type:

Single or Dual Voltage

Induction Run

Capacitor Start

Motor:

Capacitor Start

Bearings:

Ball

Diameter (Inches):

6-1/2"

Horse Power:

3/4

Voltage:

208-230/115V

Duty:

Continuous

RPM:

1725

Mount:

Cushion Base

Poles:

4

Rotation:

RCW

Phase:

1

Enclosure Type:

Drip Proof

Hertz:

60

Speeds:

1

Frame:

56

Insulation Class:

B

Amperage:

11

Overload Protection:

None

Max Ambient Temp (°F):

104°F
