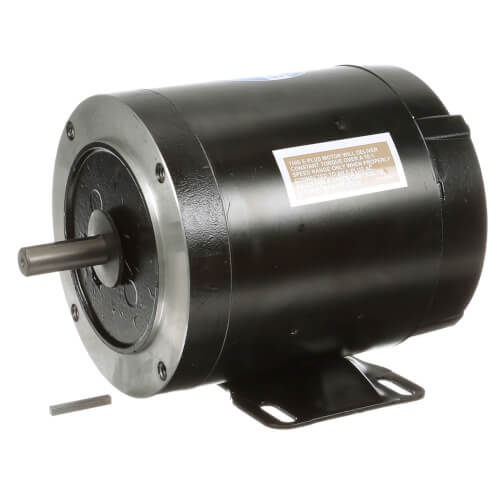

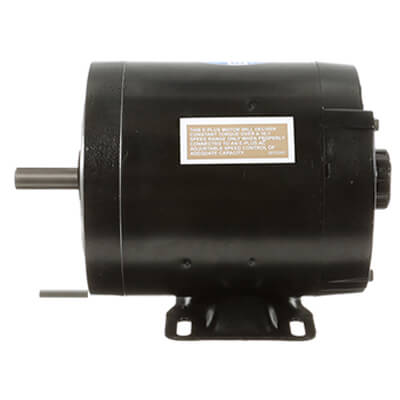

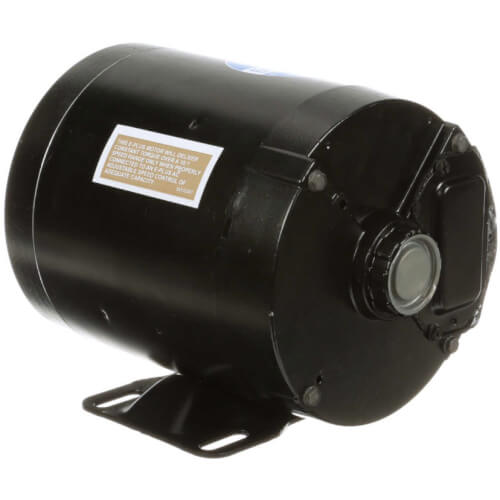

56C Frame E-Plus Fraction HP Inverter-Duty Motor (208-230/460V, 1725 RPM, 1/4 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
'/%3E%3C/svg%3E)
Hover image to zoom
Home
HVAC Supplies
Motors & Accessories
Motors and Draft Inducers
Century Motors
48 & 56 Frame Special Purpose Motors
56C Frame E-Plus Fraction HP Inverter-Duty Motor (208-230/460V, 1725 RPM, 1/4 HP)
$446.10 each
Backorder
Get it Wed, Mar 1 - Wed, Mar 8
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v
1725 RPM
RCCW
1/4 HP
Rigid Base
1.1/0.55 Amps
Description
–
56C Frame E-Plus Fraction HP Inverter-Duty Motor (208-230/460V, 1725 RPM, 1/4 HP)
Features:
Features:
- Auto Protector
- Shaft Diameter 1/2” Flat
- 1.507” I.D. Hub
- Split Phase
- 48 Frame
- 60 HZ
- Sleeve Bearings
Specs
–
| Frame: | 56C |
|---|---|
| Horse Power: | 1/4 |
| Type: | Polyphase Single or Dual Voltage Induction Run |
| Bearings: | Ball |
| Voltage: | 208-230/460v |
| Duty: | Continuous |
| Speeds: | 1 |
| Motor: | Inverter-Duty |
| RPM: | 1725 |
| Rotation: | RCCW |
| Mount: | Rigid Base |
| Phase: | 3 |
| Enclosure Type: | Totally Enclosed Non-Ventilated (TENV) |
| Hertz: | 60 |
| Amperage: | 1.1/0.55 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Poles: | 4 |
| Max Ambient Temp (°F): | 104°F |
