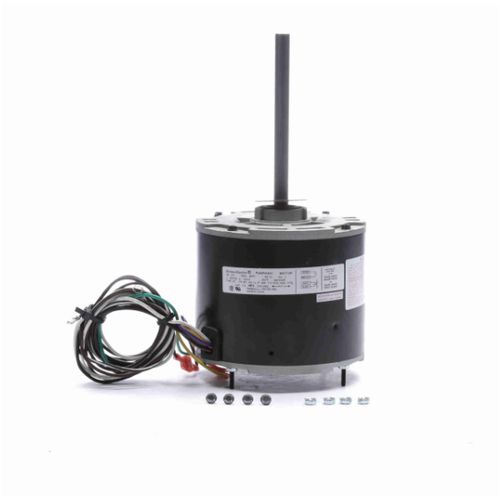

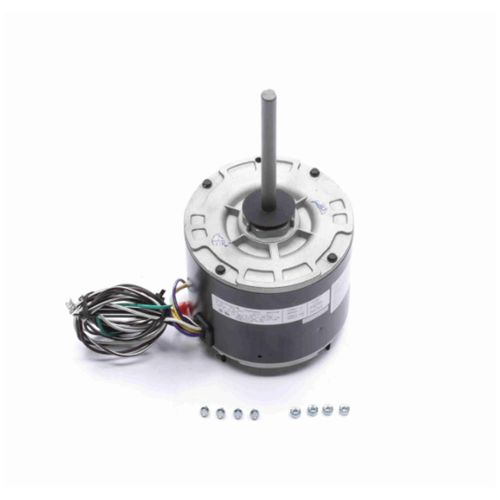

Main product image of 1/3 HP, 208-230V, Condenser Fan Motor (1075 RPM)
Magnifying glass
Hover image to zoom

1/3 HP, 208-230V, Condenser Fan Motor (1075 RPM)

Brand:
Century
SKU:
EM3729F
Rating:
(0)
Q&A:
(0)
1/3 HP, 208-230V, Condenser Fan Motor (1075 RPM)
Magnifying glass
Hover image to zoom
$122.75 each
In Stock
In Stock
Get 50 Tue, Jul 7
Order by today, receive Tuesday
This item replaces: WG840729HT
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
230V, 208/230V, 208V
Product Highlight: RPM
1075 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/3 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
2.5 Amps

Description

–

Features:

  • Pro-E Series® - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 36" Leads
  • Extended Studs Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Specs

–
Speeds:

1

Amperage:

2.5

Poles:

6

Rotation:

Reversible

Voltage:

230V

208/230V

208V

Mount:

Extended Studs

Phase:

1

Horse Power:

1/3

Overload Protection:

Automatic

Max Ambient Temp (°F):

158°F

RPM:

1075

Frame:

48Y

Bearings:

Ball

Duty:

Air Over

Insulation Class:

F

Enclosure Type:

Totally Enclosed Air Over (TEAO)

Type:

Permanent Split Capacitor
