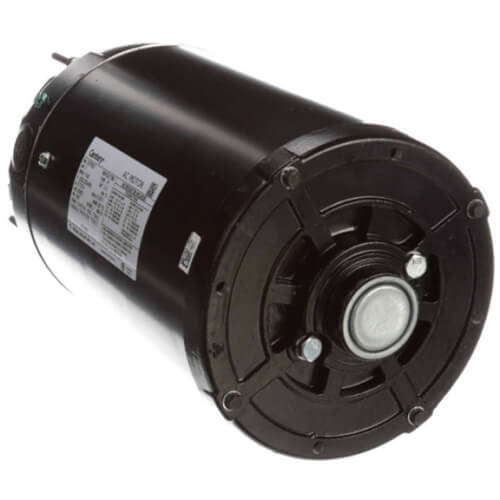

Description
Features:
  • 1 HP
  • Three Phase
  • 200-230/460 Volt
  • 1140 RPM
  • 5.7 Amps
  • Service Factor: 1.0
  • 56 Frame
  • Reversible Thru Bolt Mounting
  • Lugs for Belly Band Mounting
  • Double Sealed Ball Bearings
  • Totally Enclosed
  • 60 Hz
  • Auto Protector
Read more
Manuals (1)
Specs
Type:
Polyphase
Horse Power:
1
Voltage:
200-230/460v
RPM:
1140
Bearings:
Ball
Duty:
Continuous Air Over
Poles:
6
Mount:
Round Belly Band
Rotation:
Reversible
Phase:
3
Enclosure Type:
Totally Enclosed Air Over (TEAO)
Speeds:
1
Amperage:
5.7
Frame:
56Y
Amperage:
2.9
Insulation Class:
B
Overload Protection:
Automatic
Max Ambient Temp (°F):
140°F
×
