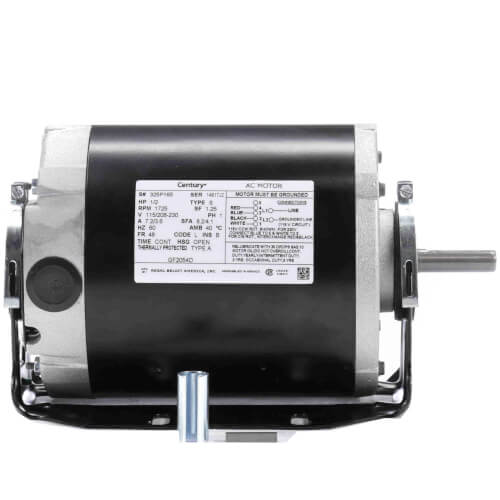

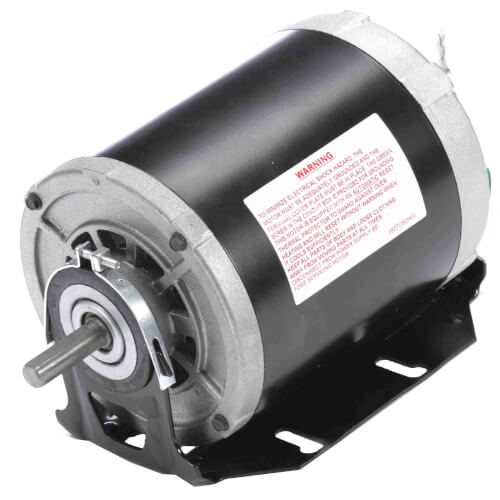

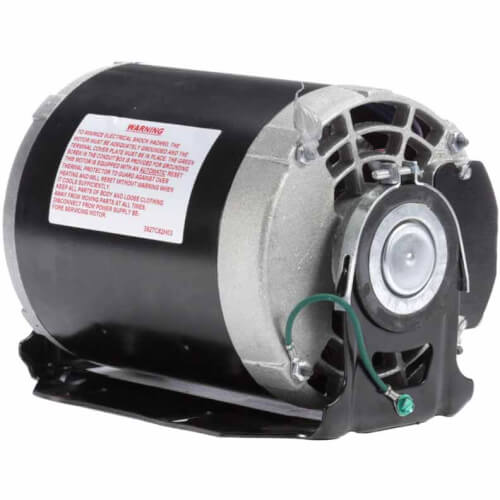

5-5/8" Split Phase Resilient Base Sleeve Bearing Motor (115/208-230V, 1725 RPM, 1/2 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$374.61 each
Backorder
Get it Tue, Oct 24 - Tue, Oct 31
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/208-230v
1725 RPM
Reversible
1/2 HP
Resilient Base
8.2, 4.1 Amps
Description
–
Features:
- Split Phase Resilient Base Motors
- Continuous Duty
- Reversible
- 60 Hz
- 1/2 HP
- 1725 RPM
- 115/208-230 Volt
- 8.2/4.1 Full Load Amps
- 48/56 Frame
- Sleeve Bearing
- Service Factor: 1.25
- Auto Protector
- Open Enclosure
- 48/56 FR = 1/2" x 1.5" Shaft with 5/8" shaft adapter - 48/56 slotted 3" height base
Specs
–
| Type: | Split Phase |
|---|---|
| Horse Power: | 1/2 |
| Bearings: | Sleeve |
| Voltage: | 115/208-230v |
| Duty: | Continuous |
| Rotation: | Reversible |
| RPM: | 1725 |
| Poles: | 4 |
| Mount: | Resilient Base |
| Phase: | 1 |
| Hertz: | 60 |
| Enclosure Type: | Open |
| Frame: | 48 |
| Speeds: | 1 |
| Insulation Class: | B |
| Amperage: | 8.2 4.1 |
| Diameter (Inches): | 5-5/8" |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
