Description

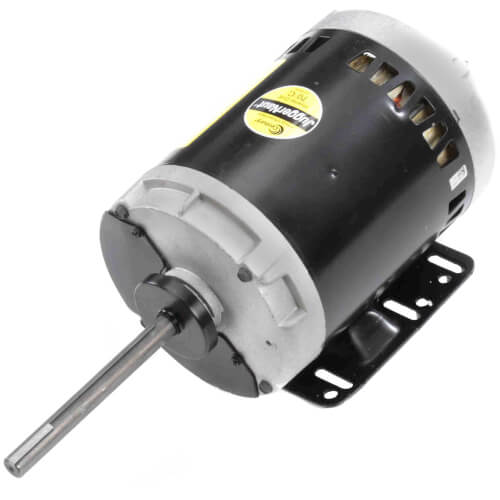

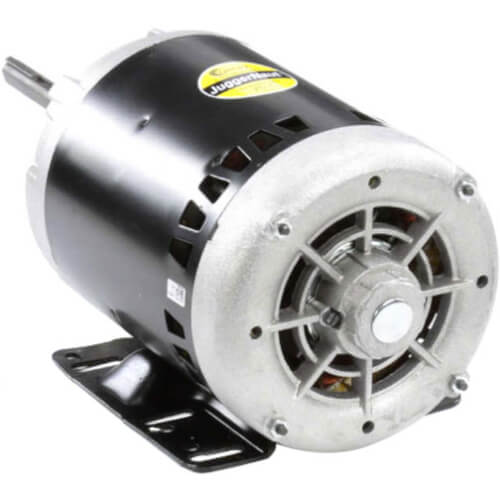

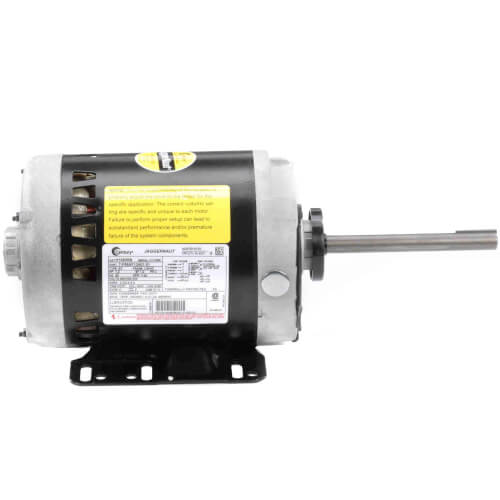

5-5/8" PSC Motor, 1 HP, 1140 RPM, Reversible (208-230/460V)

Features:
  • Inverter duty
  • 70°C (158°F) max ambient
  • Class F moisture resistant insulation
  • Automatic overload protector
  • Large water slinger
  • Double sealed ball bearings
  • Shaft up mounting
  • Quick connect design
  • Energy-efficient three phase design
  • Conductive bearing grease for inverter applications
  • 50/60 Hertz
  • Three phase
  • Energy-efficient three phase desig

***Note: Image may not be actual representation of item .
Read more
Specs
Product Type:
Motor
Type:
Single or Dual Voltage
Induction Run
Polyphase
Diameter (Inches):
5-5/8"
Horse Power:
1
Voltage:
460/208-230V
Duty:
Continuous Air Over
Speeds:
1
Phase:
3
RPM:
1140
Mount:
Round
Poles:
6
Rotation:
RCW
Bearings:
Ball
Enclosure Type:
Open Air Over
Hertz:
60
Amperage:
2.2/4.4-4.0
Frame:
56HZ
Enclosure Type:
Totally Enclosed Air Over (TEAO)
Amperage:
4.4
4
2.2
Insulation Class:
F
Overload Protection:
Thermally
Max Ambient Temp (°F):
158°F
×
