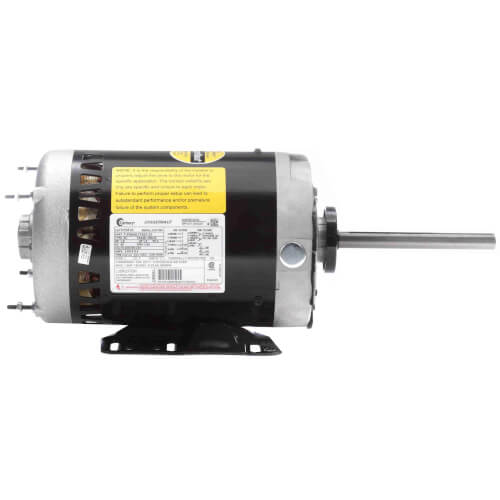

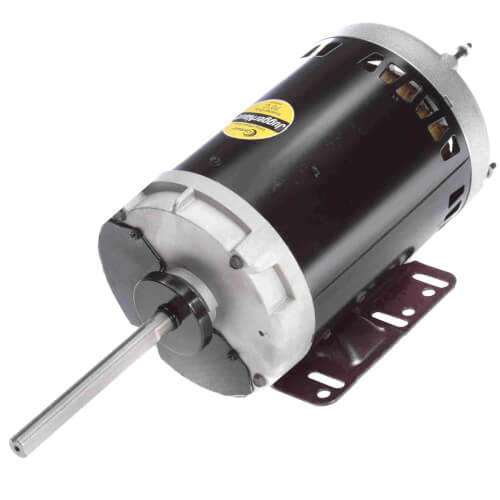

6-1/2" 3 Phase Electrically Reversible Stock Motor (460/208-230V, 1140 RPM, 1-1/2 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
H1051A has been discontinued
Discontinued July 20, 2020
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
460/208-230V
1140 RPM
RCW
1-1/2 HP
Round
Description
–
Features:
- 1 1/2 HP
- 3-Phase
- 1140 RPM
- 460/208-230 Volt
- 2.9/5.8-5.8 Amp
- 1.0 Service Factor
- 56HZ Frame
- Removable 56H rigid base
- Auto Protector
- Rotation: Electrically Reversible
- OAO (Open Air Over)
- Double Sealed Ball Bearings
- Inverter Duty
- Motor Diameter: 6 1/2"
- Shaft Dimensions: 5/8 x 6" with both Keyway and Flat
- Quick-Connect Design
- Continuous Duty
Specs
–
| Type: | Induction Run Single or Dual Voltage Polyphase |
|---|---|
| Horse Power: | 1-1/2 |
| Voltage: | 460/208-230V |
| RPM: | 1140 |
| Duty: | Continuous Air Over |
| Bearings: | Ball |
| Mount: | Round |
| Poles: | 6 |
| Enclosure Type: | Open Air Over |
| Rotation: | RCW |
| Speeds: | 1 |
| Phase: | 3 |
| Frame: | 56HZ |
| Insulation Class: | F |
| Overload Protection: | Thermally |
| Max Ambient Temp (°F): | 158°F |
