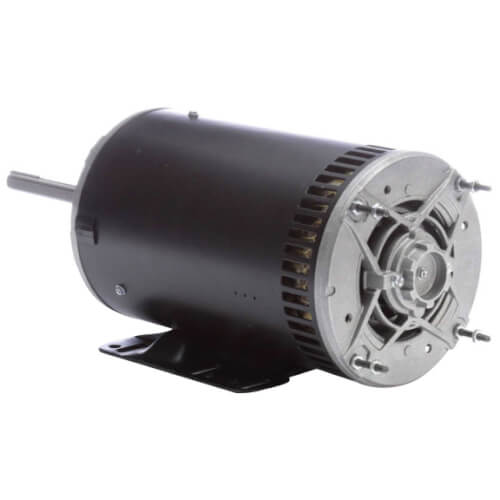

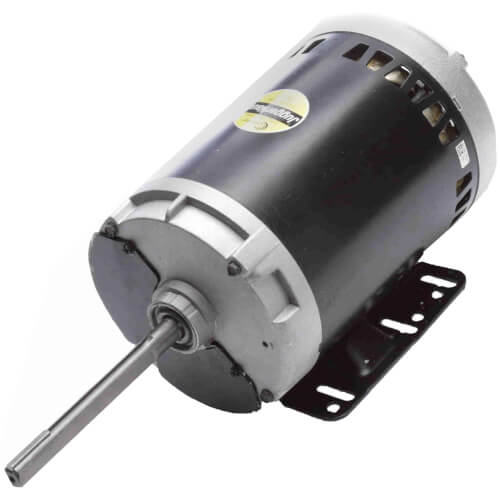

6-1/2" JuggerNaut Condenser Fan Motor (460/208-230V, 1140 RPM, 2 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$517.43 each
In Stock
Get 37 Tomorrow, Jun 5
Order by 2PM, receive Tomorrow
This item replaces: H1052A
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v
1140 RPM
Reversible
2 HP
Rigid Base
7 Amps
Description
–
6-1/2" JuggerNaut Condenser Fan Motor (460/208-230V, 1140 RPM, 2 HP)
Features:
Features:
- Inverter duty
- 70°C (158°F) max ambient
- Class F moisture resistant insulation
- Automatic overload protector
- Large water slinger
- Double sealed ball bearings
- Lugs for belly-band mounting
- Shaft up mounting
- Quick connect design
- Energy-efficient three phase design
- Conductive bearing grease for inverter applications
- 50/60 Hertz
- Three phase
- Energy-efficient three phase design
Specs
–
| Type: | 3 Phase |
|---|---|
| Horse Power: | 2 |
| Voltage: | 208-230/460v |
| Bearings: | Ball |
| Duty: | Continuous |
| Poles: | 6 |
| RPM: | 1140 |
| Mount: | Rigid Base |
| Speeds: | 1 |
| Rotation: | Reversible |
| Phase: | 3 |
| Enclosure Type: | Open Air Over |
| Amperage: | 7 |
| Frame: | 56HZ |
| Overload Protection: | Thermally |
| Insulation Class: | F |
| Max Ambient Temp (°F): | 158°F |
