H1053RB has been discontinued
Discontinued August 26, 2022
This product was discontinued by the manufacturer.
Product Highlights
–
460/208-230V
850 RPM
RCW
1 HP
Rigid Base
5.2 Amps
Description
–

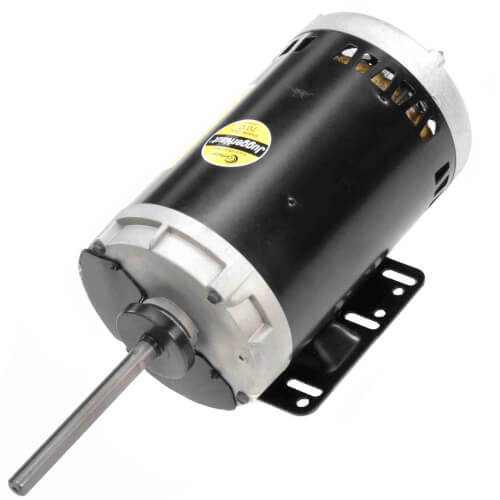

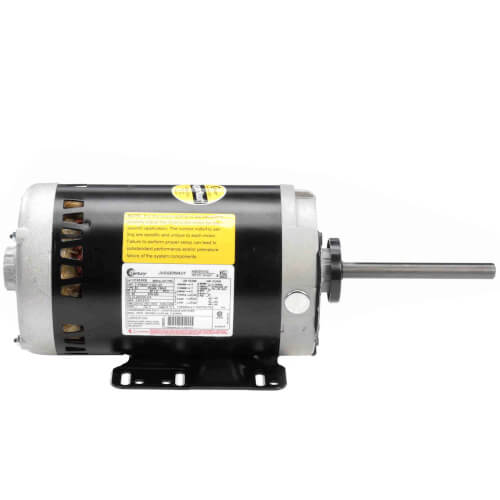

6-1/2" PSC Motor, 1 HP, 850 RPM, Reversible (208-230/460V)
Features:
***Note: Image may not be actual representation of item .
Features:
- Inverter duty
- 70°C (158°F) max ambient
- Class F moisture resistant insulation
- Automatic overload protector
- Large water slinger
- Double sealed ball bearings
- Shaft up mounting
- Quick connect design
- Energy-efficient three phase design
- Conductive bearing grease for inverter applications
- 50/60 Hertz
- Three phase
- Energy-efficient three phase desig
***Note: Image may not be actual representation of item .
Specs
–
| Type: | Induction Run Polyphase Single or Dual Voltage |
|---|---|
| Product Type: | Motor |
| Diameter (Inches): | 6-1/2" |
| Horse Power: | 1 |
| Voltage: | 460/208-230V |
| Duty: | Continuous Air Over |
| Speeds: | 1 |
| Bearings: | Double Sealed Ball |
| RPM: | 850 |
| Phase: | 3 |
| Mount: | Rigid Base |
| Poles: | 8 |
| Rotation: | RCW |
| Hertz: | 50 60 |
| Frame: | 56HZ |
| Enclosure Type: | Open Air Over |
| Insulation Class: | F |
| Amperage: | 5.2 |
| Overload Protection: | Thermally |
| Max Ambient Temp (°F): | 158°F |
