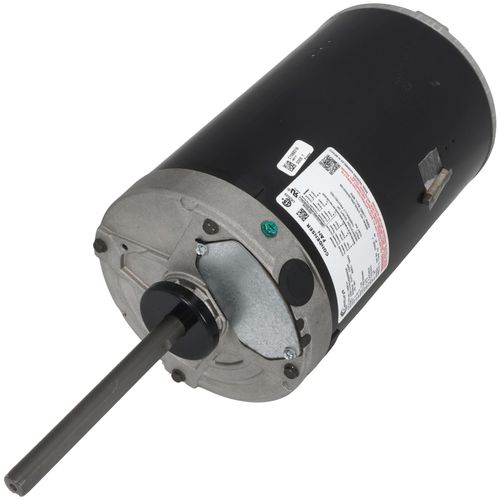

Main product image of 6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)
Magnifying glass
Hover image to zoom

6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)

Brand:
Century
SKU:
H697V1
Rating:
(0)
Q&A:
(0)
6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)
Magnifying glass
Hover image to zoom
$702.91 each
In Stock
In Stock
Get 22 Tue, Oct 27
Order by today, receive Tuesday
This item replaces: H697
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
460/200-230V
Product Highlight: RPM
1140 RPM
Product Highlight: Rotation
RCW
Product Highlight: Horse Power
1-1/2 HP
Product Highlight: Mount
Round
Product Highlight: Amperage
5.4 Amps

Description

–
6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)

Features:
  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design

Specs

–
Type:

Single or Dual Voltage

Induction Run

Polyphase

Horse Power:

1-1/2

Voltage:

460/200-230V

Duty:

Continuous Air Over

Speeds:

1

Bearings:

Double Sealed Ball

RPM:

1140

Mount:

Round

Poles:

6

Rotation:

RCW

Phase:

3

Hertz:

60

Enclosure Type:

Totally Enclosed Air Over (TEAO)

Frame:

56Y

Amperage:

5.4

Insulation Class:

B

Overload Protection:

Thermally

Diameter (Inches):

6-1/2"

Max Ambient Temp (°F):

158°F
