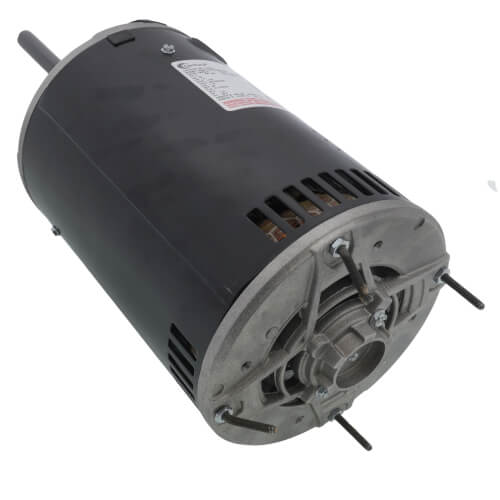

Main product image of 6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)
Magnifying glass
Hover image to zoom

6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)

Brand:
Century
SKU:
H767V1
Rating:
(1)
Q&A:
(0)
6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)
Magnifying glass
Hover image to zoom
$569.53 each
In Stock
In Stock
Get 16 Thu, Sep 10
Order by today, receive Thursday
This item replaces: H767
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
200-230/460V
Product Highlight: RPM
1140 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1-1/2 HP
Product Highlight: Mount
Round
Product Highlight: Amperage
5.1 Amps

Description

–
6-1/2" 3-Phase Vertical Condenser Fan Motor (460/200-230V, 1140 RPM, 1-1/2 HP)


  • Features:
    • Class B moisture resistant insulation
    • 5/8 inch diameter shaft with keyway and flat
    • Double sealed ball bearings
    • 1.0 service factor
    • Automatic overload
    • 60ºC ambient
    • Single speed
    • 60 Hertz
    • Three phase
    • Air over

    • Specs

    –
    Type:

    3 Phase

    Horse Power:

    1-1/2

    Voltage:

    200-230/460V

    Speeds:

    1

    Duty:

    Continuous

    RPM:

    1140

    Poles:

    6

    Mount:

    Round

    Bearings:

    Double Sealed Ball

    Rotation:

    Reversible

    Phase:

    3

    Hertz:

    60

    Enclosure Type:

    Open Air Over

    Frame:

    56Y

    Amperage:

    5.1

    Overload Protection:

    Thermally

    Insulation Class:

    B

    Max Ambient Temp (°F):

    140°F

    Contact

    Help Face
    CALL US
    Question? Call or text 888-757-4774
    +
    Help Face

    Questions?

    Speak with a real person who will go out of the way to help!
    Call or text 888-757-4774
    Closed Now:
    Hours
    Monday – Thursday
    8am–7:45pm
    Friday
    9am–7:45pm
    Saturday – Sunday
    9am–5:45pm
    Response by Thurs

    QUICK SUPPORT

    Order StatusShipping PolicyReturnsIs My Item in Stock?Request Item for Site

    Product Reviews

    5 out of 1 review
    100% would recommend this product
    5
    out of 1 Review
    100% would recommend this product
    WRITE A REVIEW
    5 star
    100%
    4 star
    0%
    3 star
    0%
    2 star
    0%
    1 star
    0%
    WRITE A REVIEW
    Showing 1-1 of 1 reviews

    Well made and designed motor.

    I'm really happy with this motor. It's super easy to convert it to 208/230 or 460 by adjusting plug and there's enough space in wiring compartment to use 90 or straight wire crimp connectors.
    David
    Pennsylvania
    16 days ago
    Was this review helpful to you?
