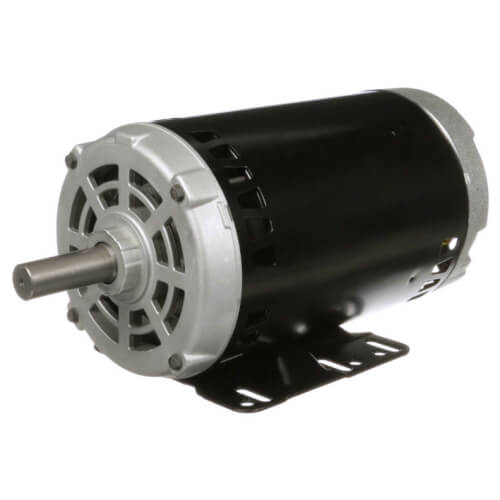

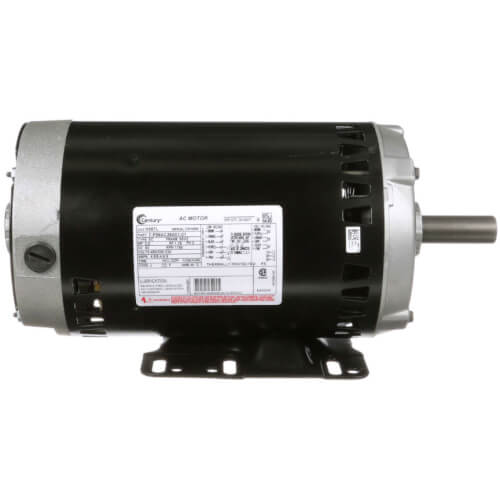

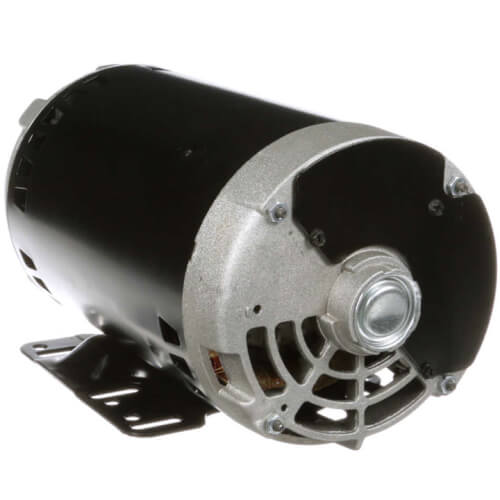

3.0 HP 460/200-230v General Purpose Motor, 3 PH, 1725 RPM, 56HZ Frame, ODP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
H887L has been discontinued
Discontinued January 21, 2026
This product was discontinued by the manufacturer.
Direct Replacement:
3-Phase ODP Polyphase Commercial Belt-Drive Blower Motor, 56HZ (200-230/460V, 3 HP, 1725 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
460/200-230V, 200v, 230V, 460v
1750 RPM
RCCW
3 HP
Rigid Base
4.5, 8.9, 9.4 Amps
Specs
–
| Type: | Polyphase Induction Run Single or Dual Voltage |
|---|---|
| Horse Power: | 3 |
| Voltage: | 460/200-230V 200v 230V 460v |
| Duty: | Continuous |
| Bearings: | Ball |
| RPM: | 1750 |
| Mount: | Rigid Base |
| Hertz: | 60 |
| Frame: | 56HZ |
| Amperage: | 4.5 8.9 9.4 |
| Enclosure Type: | Open Drip Proof |
| Rotation: | RCCW |
| Speeds: | 1 |
| Insulation Class: | F |
| Overload Protection: | Thermally |
| Phase: | 3 |
| Poles: | 4 |
| Max Ambient Temp (°F): | 104°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Great OEM replacement
Bought this to replace a factory motor on York RTU, fit just fine and worked like a charm.
Jb
Charlotte nc
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Do you have the shaft size?
Asked by scott 4 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Scott. The shaft size for this motor is 7/8" x 2-5/16"
Was this review helpful to you?
Verified Reply- SupplyHouseHi Scott, the shaft is; 7/8" x 2 5/16" Shaft.
Was this review helpful to you?
