Description

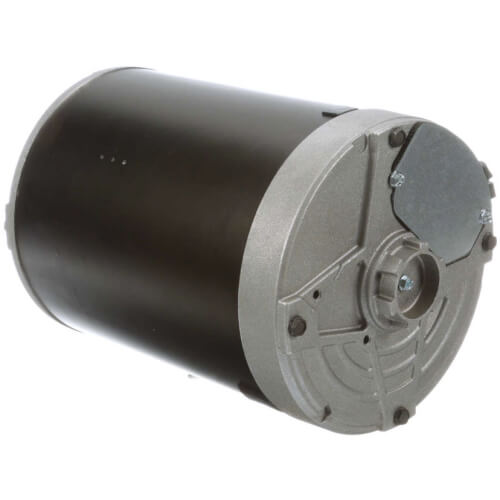

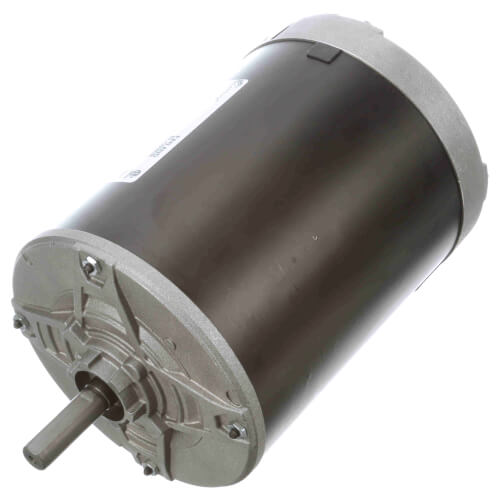

6-1/2" Vertical Condenser Fan Motor (460-208/230V, 1140 RPM, 1/2 HP)

Features:
  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
Hide Description
Specs
Type:

Single or Dual Voltage

Polyphase

Induction Run

Horse Power:

1/2

Voltage:

460/208-230V

Duty:

Continuous Air Over

Mount:

Round

RPM:

1140

Poles:

6

Bearings:

Double Sealed Ball

Enclosure Type:

Totally Enclosed Air Over (TEAO)

Rotation:

RCCW

Speeds:

1

Phase:

3

Hertz:

60

Amperage:

0.95

1.9

2

0.95/2.0-1.9

Frame:

56Y

Insulation Class:

B

Overload Protection:

Thermally

Diameter (Inches):

6-1/2"

Max Ambient Temp (°F):

104°F

×
