OWW6516 has been discontinued
Discontinued February 27, 2026
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
208/230V
1075 RPM
Reversible
1/5 HP
Extended Studs
1.5 Amps
Description
–

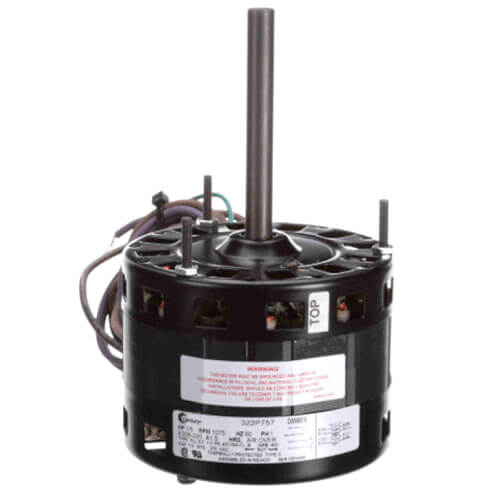

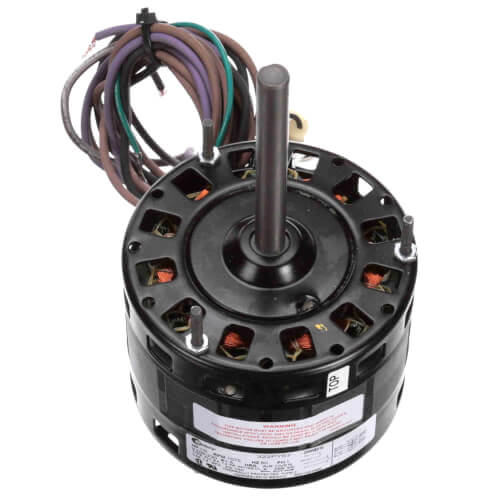

5-5/8" OEM Replacement Motor (208-230V, 1075 RPM, 1/5 HP)
Features:
Features:
- Hertz: 60
- Overload: Automatic
- Phase: 1
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| OEM: | Westinghouse |
| Horse Power: | 1/5 |
| Voltage: | 208/230V |
| Bearings: | Sleeve |
| Duty: | Air Over |
| Poles: | 6 |
| RPM: | 1075 |
| Mount: | Extended Studs |
| Rotation: | Reversible |
| Enclosure Type: | Open |
| Hertz: | 60 |
| Speeds: | 1 |
| Frame: | 42Y |
| Amperage: | 1.5 |
| Phase: | 1 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
