OYK1006 has been discontinued
Discontinued April 25, 2023
This product was discontinued by the manufacturer.
Product Highlights
–
208/230V
1075 RPM
CWLE
1/8 HP
Extended Studs
0.8 Amps
Description
–

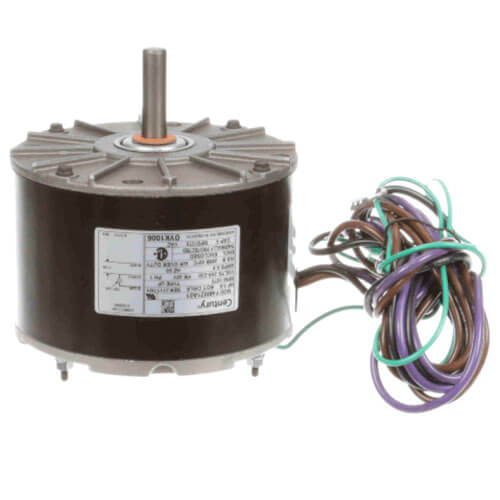

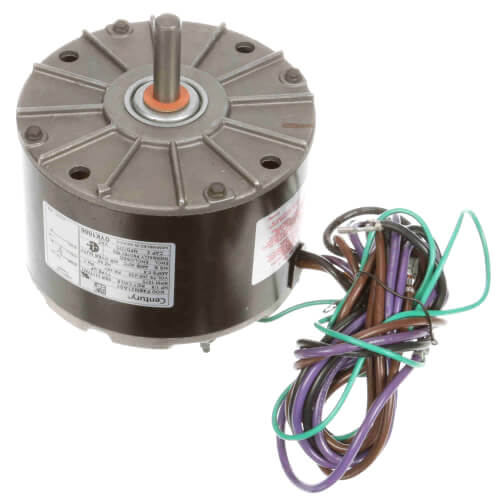

5-5/8" PSC Motor, 1/8 HP, 1075 RPM, CWLE (208-230V)
Features:
***Note: Image may not be actual representation of item .
Features:
- 80ºC (176ºF) max ambient
- Double sealed ball bearings with high temperature synthetic grease
- Energy-efficient PSC design
- Mounts by belly band, adjustable extended thru-bolts, or Rheem/Trane mounting holes, with screws supplied
- Works with Johnson Controls Speed controls
***Note: Image may not be actual representation of item .
Specs
–
| Product Type: | Motor |
|---|---|
| Type: | Permanent Split Capacitor |
| Diameter (Inches): | 5-5/8" |
| Horse Power: | 1/8 |
| Voltage: | 208/230V |
| Duty: | Air Over |
| Speeds: | 1 |
| Poles: | 6 |
| Rotation: | CWLE |
| Mount: | Extended Studs |
| Bearings: | Sleeve |
| RPM: | 1075 |
| Hertz: | 60 |
| Enclosure Type: | Totally Enclosed |
| Frame: | 48Y |
| Amperage: | 0.8 |
| Phase: | 1 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Vertical Shaft Down |
