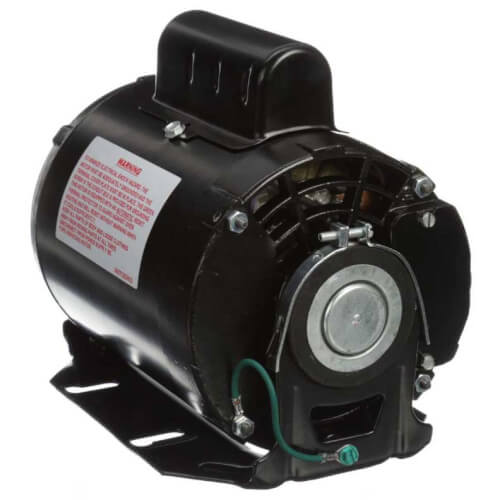

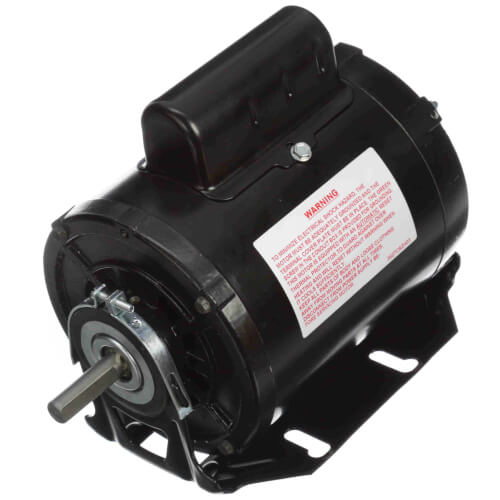

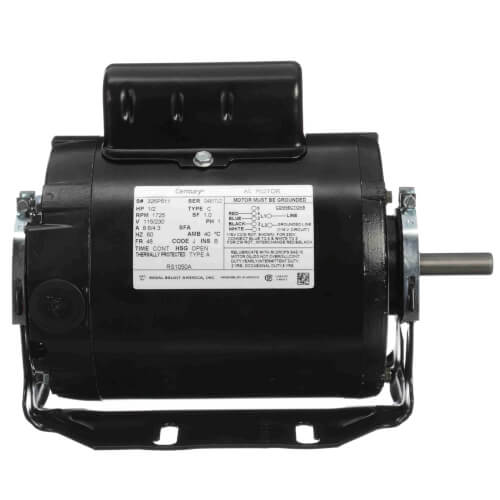

Description
Features:
  • High Start Torque
  • Open Construction
  • Reversible
  • 40 Degrees C Ambient
  • 60 Hz
  • 1/2 HP
  • 1725 RPM
  • 115/230 Volt
  • 8.6/4.3 Full Load Amps
  • 48 Frame
  • Sleeve Bearing
  • Service Factor: 1
  • Auto Protector
  • Insulation Class B
  • Open D.P. Construction
Hide Description
Manuals (1)
Specs
Motor:

Capacitor Start

Type:

Capacitor Start

Induction Run

Bearings:

Sleeve

Diameter (Inches):

5-5/8"

Horse Power:

1/2

Voltage:

115/230v

Duty:

Continuous

Rotation:

Reversible

Poles:

4

RPM:

1725

Mount:

Resilient Base

Phase:

1

Hertz:

60

Enclosure Type:

Open

Speeds:

1

Frame:

48

Amperage:

4.3

Insulation Class:

B

Amperage:

8.6

Overload Protection:

Automatic

Max Ambient Temp (°F):

104°F

×
