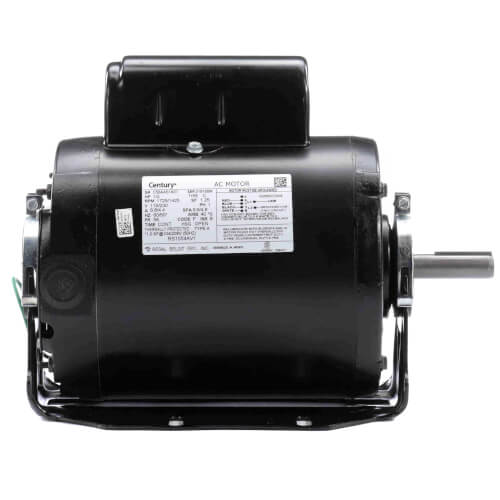

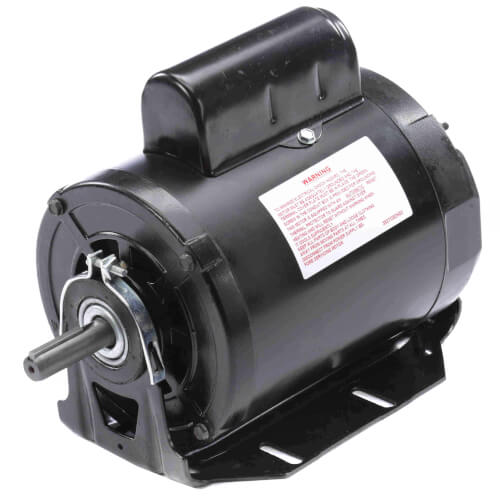

Description
Features:
  • High Start Torque
  • Open Construction
  • Reversible
  • 40 Degrees C Ambient
  • 60 Hz
  • 1/2 HP
  • 1725/1425 RPM
  • 115/230 Volt
  • 9.6/4.8 Full Load Amps
  • 56 Frame
  • Sleeve Bearing
  • Service Factor: 1.25
  • Auto Protector
  • Insulation Class B
  • Open Enclosure
Hide Description
Manuals (1)
Specs
Type:

Induction Run

Capacitor Start

Motor:

Capacitor Start

Bearings:

Sleeve

Diameter (Inches):

6-1/2"

Horse Power:

1/2

Voltage:

115/230v

Rotation:

Reversible

Duty:

Continuous

RPM:

1425

Poles:

4

RPM:

1725

Mount:

Resilient Base

Phase:

1

Enclosure Type:

Open

Hertz:

60

Frame:

56

Speeds:

1

Amperage:

4.4

Insulation Class:

B

Amperage:

8.8

Overload Protection:

Automatic

Max Ambient Temp (°F):

104°F

×
