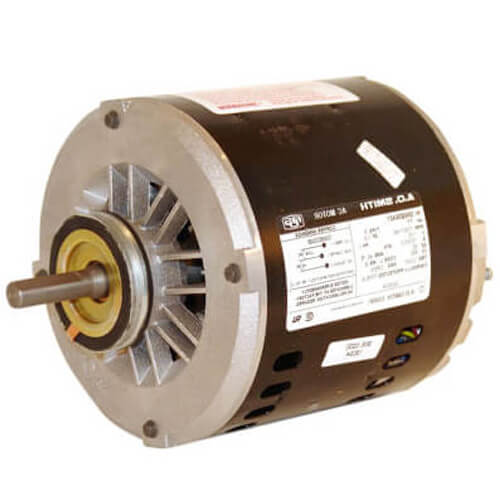

Main product image of 2-Speed Evaporative Cooler Motor (115V, 1725/1140 PM, 3/4 - 1/4 HP)
Magnifying glass
Hover image to zoom

2-Speed Evaporative Cooler Motor (115V, 1725/1140 PM, 3/4 - 1/4 HP)

Brand:
Century
SKU:
SVB2074V1
Rating:
(0)
Q&A:
(0)
2-Speed Evaporative Cooler Motor (115V, 1725/1140 PM, 3/4 - 1/4 HP)
Magnifying glass
Hover image to zoom
$241.94 each
In Stock
In Stock
Get 3 Wed, Jul 8
This item replaces: SVB2074
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: RPM
1140, 1725 RPM
Product Highlight: Rotation
CCWLE
Product Highlight: Horse Power
1/4, 3/4 HP
Product Highlight: Mount
Resilient Base
Product Highlight: Amperage
10.5 Amps

Description

–
Application: Belt Driven Evaporative Coolers

Features:
  • Brass Current Carrying Terminal Board Parts
  • Class B Insulation
  • Continuous Oil Filtration
  • Electro-Zinc Plated Governor Parts, Dust Caps, Terminal Board Cover
  • Heavy Magnet Wire Insulation
  • High Viscosity Encapsulating Varnish
  • Moisture Resistance Terminal Board
  • No Ventilation Openings in the Top Portion of the Frame
  • 7 1/2" Ring to Ring Dimension
  • (Split Phase)
  • 60 Hertz
  • Automatic Overload
  • NEMA 56Z Frame
  • 1.0 Service Factor

Specs

–
Poles:

6

Type:

Split Phase

Horse Power:

1/4

3/4

Voltage:

115V

Duty:

Continuous

RPM:

1140

1725

Bearings:

Ball

Mount:

Resilient Base

Rotation:

CCWLE

Hertz:

60

Speeds:

2

Amperage:

10.5

Frame:

56Z

Phase:

1

Insulation Class:

B

Enclosure Type:

Open Drip Proof

Overload Protection:

Automatic

Max Ambient Temp (°F):

104°F
