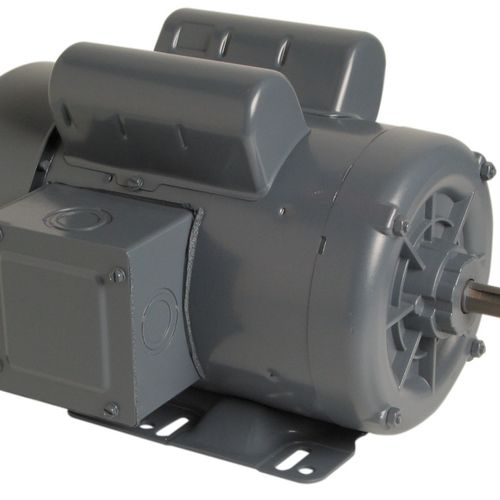

C686V1 General Purpose Motor

Brand:
Century
SKU:
UC686
Rating:
(0)
Q&A:
(0)
C686V1 General Purpose Motor
Magnifying glass
Hover image to zoom
$710.46 each
Out of Stock
Out of Stock
Get it Tue, Aug 11 - Tue, Aug 18
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Description

–
  • Electrical Type: Capacitor Start Capacitor Run
  • HP: 1 1/2
  • RPM: 1725
  • Frame: 56H
  • Diameter: 6.5"
  • Enclosure: Totally Enclosed Fan Cooled
  • Phase: 1
  • Voltage: 115/208-230
  • Rotation: Selective Counterclockwise
  • Material: Rolled Steel
  • Mounting: Rigid Base
  • Amperage: 15.0/7.8-7.5
  • Shaft Type: NEMA 56
  • KW: 1.1
  • Shaft Diameter: 0.625
  • Bearings DE Type: Ball
  • Bearings ODE Type: Ball
  • Shaft Extension: 1.880"
  • Overload: Thermally Protected UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.|Continuous duty cycle design allows maximum operation at the rated power specifications.|Class B or F Insulation protects motor for a maximum temperature rating.|Permanently lubricated, double-sealed bearings extend the lifetime of the motor.| Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
