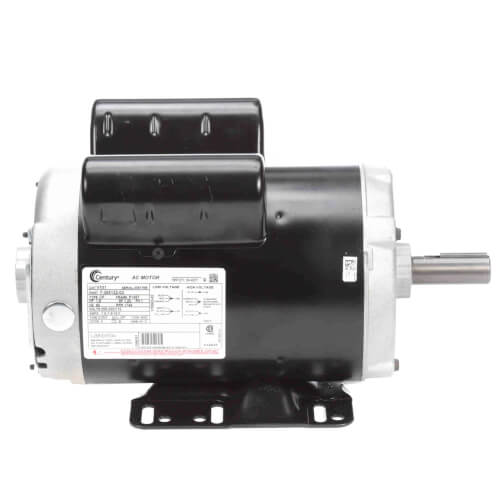

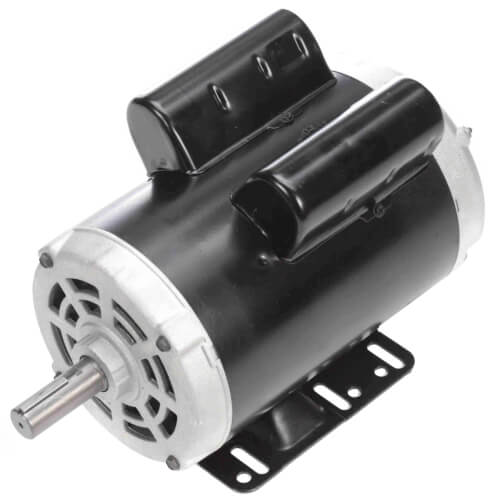

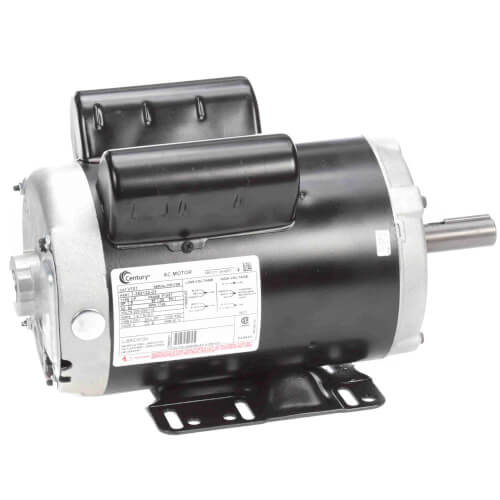

V101 Capacitor Start Rigid Base Motor (208-230/115V, 1725 RPM, 1-1/2 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
V101 has been discontinued
Discontinued January 20, 2021
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
208-230/115V
1745 RPM
RCCW
1-1/2 HP
Rigid Base
15 Amps
Description
–
V101 Capacitor Start Rigid Base Motor (208-230/115V, 1725 RPM, 1-1/2 HP)
Capacitor Start Rigid Base Motors are ideal for use with compressors, pumps, conveyors and more. Features high start torque, reversible motor direction, a rigid base, 40°C ambient temperature and 60HZ. Motors are open drip proof for continuous operation.
Capacitor Start Rigid Base Motors are ideal for use with compressors, pumps, conveyors and more. Features high start torque, reversible motor direction, a rigid base, 40°C ambient temperature and 60HZ. Motors are open drip proof for continuous operation.
Specs
–
| Type: | Capacitor Run Single or Dual Voltage Capacitor Start |
|---|---|
| Horse Power: | 1-1/2 |
| Voltage: | 208-230/115V |
| Duty: | Continuous |
| Bearings: | Ball |
| RPM: | 1745 |
| Phase: | 1 |
| Mount: | Rigid Base |
| Speeds: | 1 |
| Rotation: | RCCW |
| Frame: | 145T |
| Hertz: | 60 |
| Amperage: | 15 |
| Insulation Class: | B |
| Overload Protection: | None |
| Enclosure Type: | Drip Proof |
| Poles: | 4 |
| Max Ambient Temp (°F): | 104°F |
