6-1/2" 1-Speed Evaporative Cooler Motor (115/230V, 1725 RPM, 2 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
Product Highlights
Description

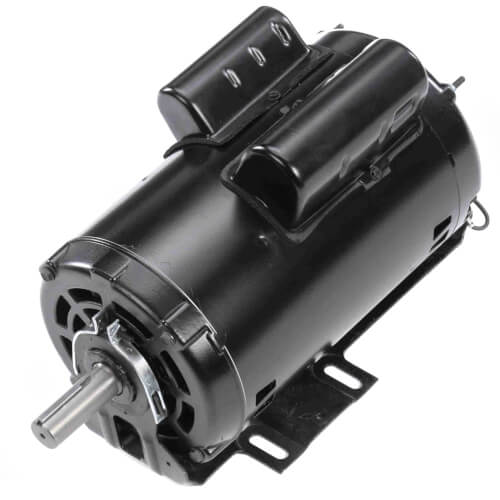

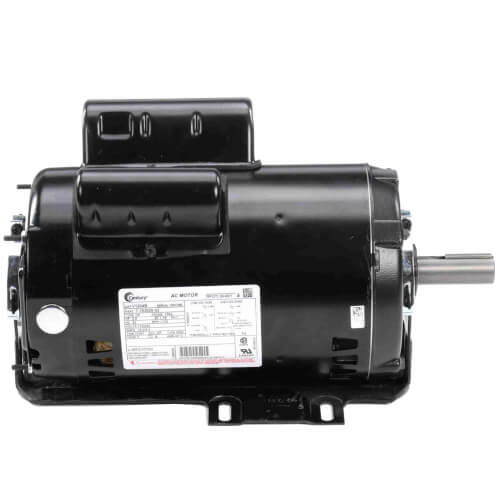

6-1/2" 1-Speed Evaporative Cooler Motor (115/230V, 1725 RPM, 2 HP)
The evaporative cooler motor provides all the features needed to insure long, trouble-free life under the high moisture atmosphere of evaporative cooler duty.
Features:
- Brass current carrying terminal board parts
- Electro-zinc plated governor parts, dust caps, terminal board cover
- High viscosity encapsulating varnish
- No frame ventilation openings in the top portion of the frame
- Single and two speed
- Moisture resistant terminal board
- Heavy magnet wire insulation
- Class B insulation
- Continuous filtration of oil
- 7-1/2" ring to ring dimension
Applications: Belt Driven Evaporative Coolers readily acknowledged as the leading supplier to the residential and commercial evaporative cooler market, Century offers moisture resistant features including plated hardware and switch parts, fungus treatment and double dip varnish treatment. These features provide the best buy for the customer.
Note: Image may not be actual representation of item.
Specs
| Type: | Induction Run Single or Dual Voltage Capacitor Start |
|---|---|
| Frame: | 56Z |
| Horse Power: | 2 |
| Voltage: | 115/230V |
| Duty: | Continuous |
| Poles: | 4 |
| Bearings: | Ball |
| RPM: | 1725 |
| Mount: | Cushion Base |
| Speeds: | 1 |
| Phase: | 1 |
| Rotation: | RCCW |
| Enclosure Type: | Drip Proof |
| Hertz: | 60 |
| Insulation Class: | B |
| Overload Protection: | Thermally |
| Max Ambient Temp (°F): | 104°F |
