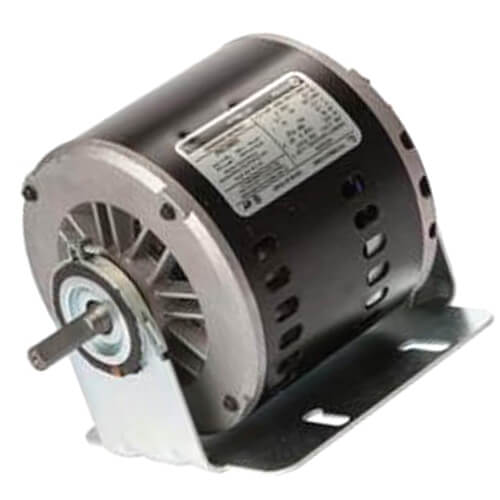

9.45" Single Speed Evaporative Cooler Motor (115V, 1725 RPM, 1/3 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$318.77 each
In Stock
This item replaces: VB2034
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1725 RPM
CCWLE
1/3 HP
6.5 Amps
Description
–
Application: Belt Driven Evaporative Coolers
- Brass Current Carrying Terminal Board Parts
- Class B Insulation
- Continuous Oil Filtration
- Electro-Zinc Plated Governor Parts, Dust Caps, Terminal Board Cover
- Heavy Magnet Wire Insulation
- High Viscosity Encapsulating Varnish
- Moisture Resistance Terminal Board
- No Ventilation Openings in the Top Portion of the Frame
- 7-1/2" Ring to Ring Dimension (Split Phase)
- 60 Hertz
- Automatic Overload
- NEMA 56Z Frame
- 1.0 Service Factor
Specs
–
| Horse Power: | 1/3 |
|---|---|
| Bearings: | Ball |
| RPM: | 1725 |
| Rotation: | CCWLE |
| Frame: | 56Z |
| Speeds: | 1 |
| Phase: | 1 |
| Hertz: | 60 |
| Amperage: | 6.5 |
| Enclosure Type: | Open Drip Proof |
| Insulation Class: | B |
| Overload Protection: | Automatic |
