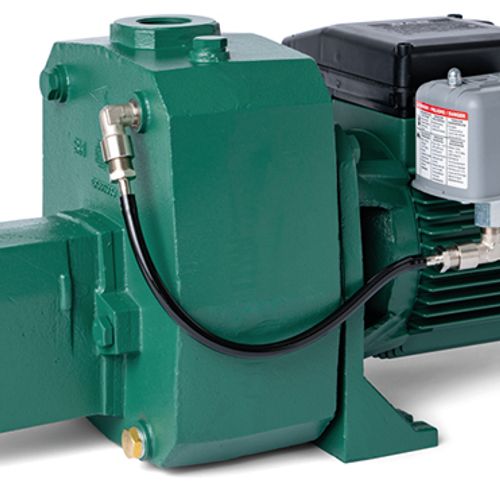

Jet 150-PS Self-Priming Centrifugal Electro Pump (230V, 1.5 HP)

DAB JET Self-priming centrifugal pumps for domestic use, also able to run in the presence of air bubbles, with cast-iron body. Optimal for residential pressure boosting, small-medium irrigation systems and gardening applications.

Features

• Wide and comprehensive range
• Availability of pump body and motor support in cast iron
• Internal ejector
• Design of fan guard to also function as air conveyor
• Interchangeable pump body
• Ability also to handle water containing gas
• Very high suction capacity
• Structure strength and flexibility
• Head up to 203 ft (62 m)
• Optimal motor cooling
• Ability to operate also in the presence of air bubbles and small quantities of sand
• Prevention of malfunctions and maintenance of motor efficiency
• Standardization of components enables optimal spare parts management

TECHNICAL DATA

• Operating Range: From 2 to 46gpm with a head up to 203ft ( 88 psi )
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range: From 32°F to 95°F for domestic use or 32°F to 120°F for other uses.
• Maximum Suction depth: 26 ft
• Maximum ambient temp.: 104°F
• Maximum operating pressure: 118 psi
• Installation: fixed or portable in a horizontal position
• Power Supply: 230v 60Hz
