Oterra Single Zone 9,000 BTU SEER2 20 Ductless Mini Split Air Conditioner and Heat Pump, 115V, R-32 (Package)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
Lift Gate
Product Highlights
Description
In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.

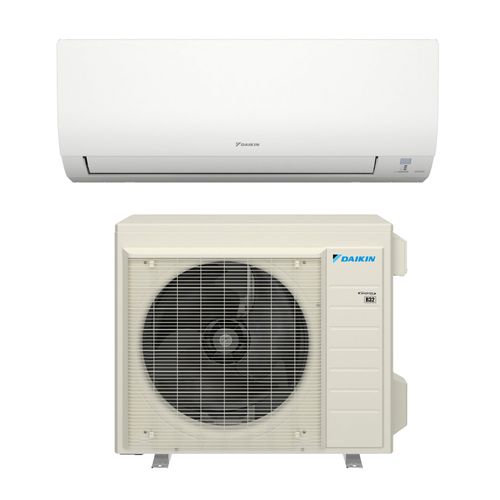

This product is a mini split package that includes both an indoor unit (FTXQ09ASBU9) and outdoor unit (RXQ09ASBU9) .
Features:
- Flare less joint
- 15A Circuit Breaker
- Removable Drain Pan
- Daikin Swing compressor with Inverter
- Indoor Unit Quiet Operation
- Auto Defrost, Auto Fan Speed and Suto Restart (after power failure)
- Program Dry function
- Wide Angle Louvers and Vertical Auto Swing
- Energy Saving Function
- Sleep Mode
- Mold Proof Air Filter
Benefits:
- Easier, Faster and more reliable installation with Flareless joint
- 15A circuit breaker only needs one space in Electrical Panel.
- Precharged for up to 50'
- 12 year Warranty
- R-32 is Easy, Proven, Efficient and Available
- Simple maintenance
- Reduced power consumption
- Affordable cost saving solution
- Blue fin protection increases life span of outdoor unit.
Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.
The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.
Please check the SEER2 site to ensure efficiency compliance for your region.
Specs
| Liquid Line: | 1/4" |
|---|---|
| SEER2: | 20 |
| Suction Line: | 3/8" |
| Application: | Cooling Heating |
| Number of Zones: | 1 |
| Weight (lbs): | 77 lbs |
| Product Type: | Bundle |
| Model: | Oterra |
| Cooling Capacity (BTU): | 9000 |
| Energy Star Rated: | No |
| Warranty: | 12 Year (Parts) |
| EER2: | 12 |
| Mount: | Wall |
| HSPF2: | 9 |
| Voltage: | 115V |
| Heating Capacity (BTU): | 10900 |
| Refrigerant Type: | R-32 |
