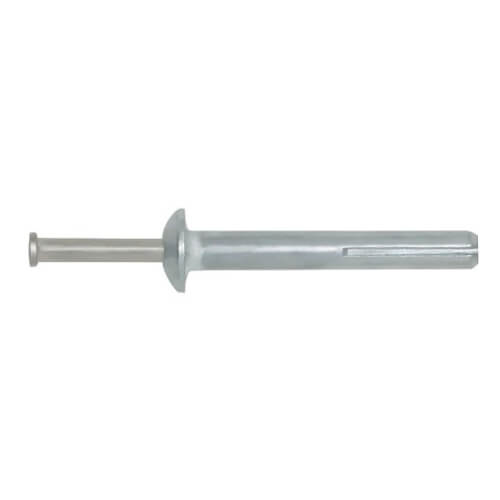

Overview The Zamac Nailin is a nail drive anchor which has a body formed from Zamac alloy. Drive nails are available in carbon or stainless steel. The anchor can be used in concrete, block, brick or stone.A corrosion resistant Zamac alloy is used to form the anchor body with either a mushroom or flathead. The anchor can be used for light duty, tamperproof applications. The anchor is not recommend for overhead, life-safety or sustained tensile loading applications (see performance data section).

Product Features
  • General purpose anchoring
  • Installs in a variety of base materials
Product Specifications
  • Promotion Restriction: Not eligible for promotion
  • Item: Hammer Drive Pin Anchor
  • Pin Anchor Type: Hammer Drive Pin Anchor
  • Anchor Head Style: Mushroom
  • Anchor Body Material: Zamac
  • Anchor Body Finish: Plain
  • Pin Material: Type 304 Stainless Steel
  • Anchor Dia.: 1/4"
  • Anchor Length: 1-1/2"
  • Ultimate Tension in 4000 PSI Concrete (Lb.): 875
  • Max. Fixture Thickness: 7/8"
  • Shank Length: 1-1/2"
  • Min. Embedment: 5/8"
