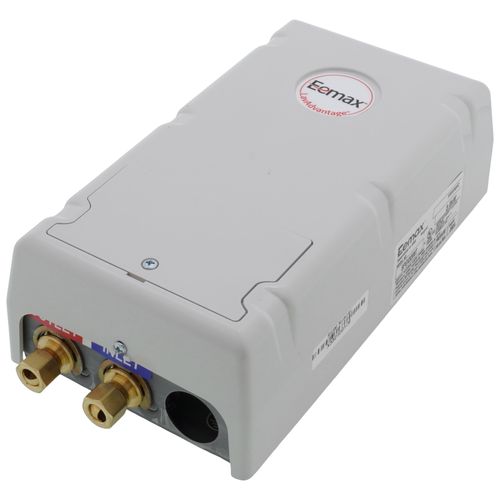

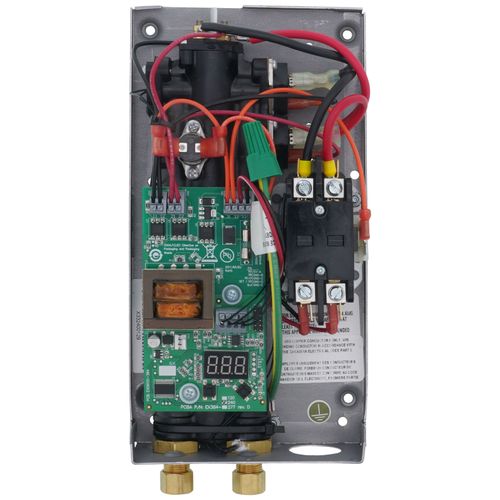

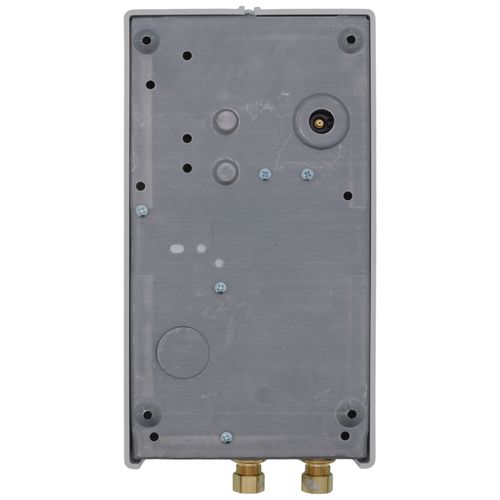

Main product image of LavAdvantage Thermostatic Electric Tankless Water Heater (3 kW, 208V)
Magnifying glass
Hover image to zoom

LavAdvantage Thermostatic Electric Tankless Water Heater (3 kW, 208V)

Brand:
Eemax
SKU:
SPEX3208T
Rating:
(0)
Q&A:
(0)
LavAdvantage Thermostatic Electric Tankless Water Heater (3 kW, 208V)
Magnifying glass
Hover image to zoom
$344.37 each
In Stock
In Stock
Get 2 Tue, Jun 16
Order by today, receive Tuesday

MANUALS (3)

Product Overview
User Guide
Warranty
Product Overview
User Guide
Warranty
Replacement Parts
View All
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Fuel Type
Electric
Product Highlight: Max Flow (GPM)
0.2 MAX GPM
Product Highlight: Installation Type
Under Sink
Product Highlight: Warranty
5 Year Against Leaks/1 Year on Parts & Electrical Components Warranty
Product Highlight: Voltage
208V

Description

–
Note: 3/8" Compression (1/2" OD)

    Applications:
    • Lavatory sinks
    • Multi lav configurations ideal for sensor or metering faucets (ML option - 110°F max.)
    • Emergency eye wash fountains (EE option - 90°F max.)
    Specifications:
    • Volts: 208 V
    • kW: 3.0 kW
    • Amps: 15A
    • Temperature Rise F at 0.2 GPM: 59 Degrees
    • Recommended Wire Size: 14 AWG
    Features:
    • Industry’s lowest activation with 0.2 GPM turn on flow
    • Active energy management with power modulating controls
    • Microprocessor temperature control with digital display for thermostatic accuracy +/-1°F
    • Field adjustable set point range between 70-140°F. Factory set at 120°F (3.5kW and below set at 105°F). Special settings of higher or lower range available based on options
    • Silent Operation
    • Mounts in any orientation
    • Proprietary purge technology engages upon installation to help protect against dry-fire occurrence
    • Accessible diagnostic feature displays error codes
    • Cut energy waste – Flow switch activates heater only on demand (no standby heat loss)
    • Save water and time by installing unit at point-of-use to eliminate long pipe runs
    • Eliminate costly mixing valves (check local codes)
    • Continuous hot water – No storage capacity to run out
    • Easy installation. Only one cold or hot water line need be brought to installation – integral compression fittings are 3/8" (no sweat connections)
    • Reduces installation cost and materials. No T&P relief valve needed (check local codes)
    • High temperature limit switch (ECO)
    • Booster up to 180°F (S option)
    • Compact size fits almost anywhere for flexible installation; suitable for ADA compliant facilities
    • Warranty, five (5) years limited on leaks, one (1) year parts

Specs

–
Voltage:

208V

Kilowatts (KW):

3

Amps (208V):

15

Max Flow (GPM):

0.2

Max Operating Pressure:

150 psi

Min Operating Pressure (PSI):

35 PSI

Warranty:

5 Year Against Leaks/1 Year on Parts & Electrical Components

Installation Type:

Under Sink

Fuel Type:

Electric

Phase:

1

Energy Factor:

0.97

Flow Rate at 70F Temp Rise (GPM):

0.3

Flow Rate at 40F Temp Rise (GPM):

0.5

Flow Rate at 60F Temp Rise (GPM):

0.3

Flow Rate at 50F Temp Rise (GPM):

0.4
