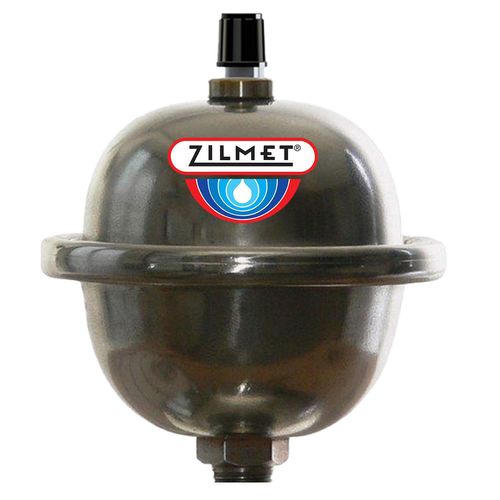

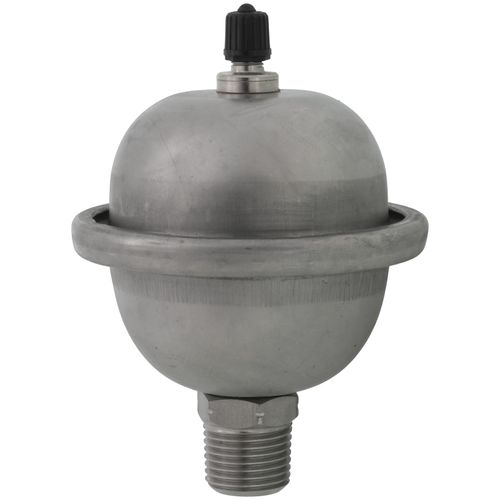

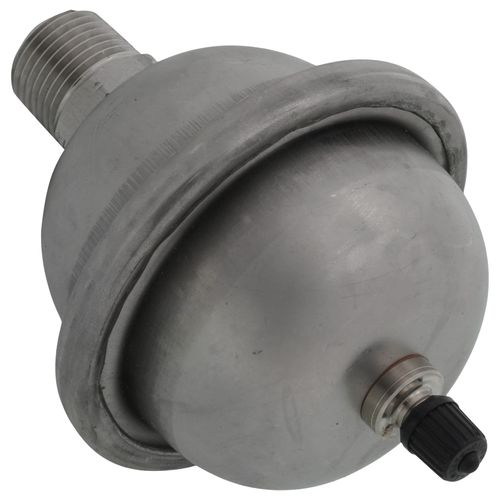

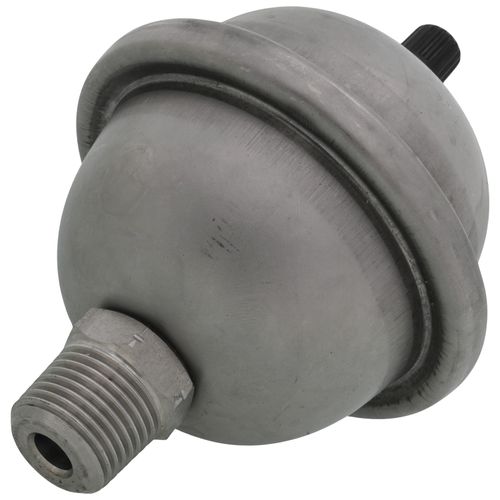

ZEP-1 Stainless Steel Thermal Expansion Tank
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$45.39 each
In Stock
Get 121 Wed, Apr 23
Order by today, receive Wednesday
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2" Connection
150 MAX PSI
Stainless Steel
Threaded Connection
3.5" Diameter
4.6"
Description
–
Introducing the NEW Zilmet USA ZEP-1 Stainless Steel Expansion Tank and Shock Arrester for Tankless and POU Water heaters with 2 gallons or less of total water volume.
Most tankless water heater manufacturers require a thermal expansion tank with their water heaters when a backflow preventer is required. The compact ZEP-1 is the perfect solution for providing thermal expansion protection in tight places. Stainless steel construction and NSF 61 certified.
ZEP-1 was designed to provide maximum protection to the heat exchanger and the piping system on tankless water heaters, relieving problems associated with excess pressure by absorbing any potential increase in pressure within the unit or piping system; this helps prevent potentially costly leaks and repairs.
Most tankless water heater manufacturers require a thermal expansion tank with their water heaters when a backflow preventer is required. The compact ZEP-1 is the perfect solution for providing thermal expansion protection in tight places. Stainless steel construction and NSF 61 certified.
ZEP-1 was designed to provide maximum protection to the heat exchanger and the piping system on tankless water heaters, relieving problems associated with excess pressure by absorbing any potential increase in pressure within the unit or piping system; this helps prevent potentially costly leaks and repairs.
- ZEP-1 can be installed below the isolation kit or anywhere on the cold water supply line between the heater and the check valve.
- Tank has a 50 PSI factory precharge
- Air charge can be adjusted, and is serviceable
- Entire tank is constructed of 304 stainless steel
- 1/2" NPTM 304 stainless steel connection
- UV resistant and approved for outdoor installation
- Butyl membrane diaphragm
- NSF61 Certified
Specs
–
| Application: | Plumbing |
|---|---|
| Material: | Stainless Steel |
| Connection Size: | 1/2" |
| Connection Type: | Threaded |
| Max Pressure (PSI): | 150 |
| Diameter (Inches): | 3.5" |
| Height: | 4.6" |
| Precharged PSI: | 50 psi |
| Max Operating Temp: | 140°F |
| Standards Met: | NSF 61 |
