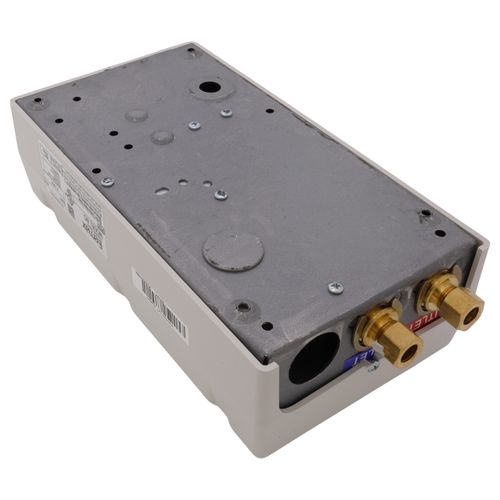

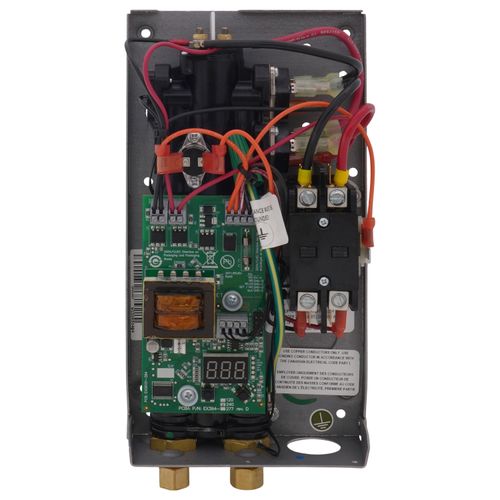

LavAdvantage Thermostatic Electric Tankless Water Heater (3.5 kW, 240V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$367.70 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Electric
0.2 MAX GPM
Under Sink
5 Year Against Leaks/1 Year on Parts & Electrical Components Warranty
240v
Description
–
Note: 3/8" Compression (1/2" OD)
- Applications:
- Lavatory sinks
- Multi lav configurations ideal for sensor or metering faucets (ML option - 110°F max.)
- Emergency eye wash fountains (EE option - 90°F max.)
- Volts: 240 V
- kW: 3.5 kW
- Amps: 15A
- Temperature Rise F at 0.2 GPM: 68 Degrees
- Recommended Wire Size: 14 AWG
- Industry’s lowest activation with 0.2 GPM turn on flow
- Active energy management with power modulating controls
- Microprocessor temperature control with digital display for thermostatic accuracy +/-1°F
- Field adjustable set point range between 70-140°F. Factory set at 120°F (3.5kW and below set at 105°F). Special settings of higher or lower range available based on options
- Silent Operation
- Mounts in any orientation
- Proprietary purge technology engages upon installation to help protect against dry-fire occurrence
- Accessible diagnostic feature displays error codes
- Cut energy waste – Flow switch activates heater only on demand (no standby heat loss)
- Save water and time by installing unit at point-of-use to eliminate long pipe runs
- Eliminate costly mixing valves (check local codes)
- Continuous hot water – No storage capacity to run out
- Easy installation. Only one cold or hot water line need be brought to installation – integral compression fittings are 3/8" (no sweat connections)
- Reduces installation cost and materials. No T&P relief valve needed (check local codes)
- High temperature limit switch (ECO)
- Booster up to 180°F (S option)
- Compact size fits almost anywhere for flexible installation; suitable for ADA compliant facilities
- Warranty, five (5) years limited on leaks, one (1) year parts
Specs
–
| Voltage: | 240v |
|---|---|
| Kilowatts (KW): | 3.5 |
| Amps (240V): | 15 |
| Max Flow (GPM): | 0.2 |
| Max Operating Pressure: | 150 psi |
| Min Operating Pressure (PSI): | 35 PSI |
| Warranty: | 5 Year Against Leaks/1 Year on Parts & Electrical Components |
| Installation Type: | Under Sink |
| Phase: | 1 |
| Flow Rate at 70F Temp Rise (GPM): | 0.3 |
| Flow Rate at 40F Temp Rise (GPM): | 0.5 |
| Flow Rate at 50F Temp Rise (GPM): | 0.5 |
| Flow Rate at 60F Temp Rise (GPM): | 0.4 |
| Fuel Type: | Electric |
