$341.08 each
In Stock
Get 5 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: EX75T
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Electric
2 MAX GPM
Under Sink
240v
32 Amps
150 MAX PSI
Description
–
Note: 3/8" Compression (1/2" OD)
- Features
- Lowest activation in industry with 0.2 GPM turn on flow
- Active energy management with power modulating controls
- Microprocessor temperature control with digital display for thermostatic accuracy
- Field adjustable set point range between 70-140 F. Factory set at 120 F (3.5kW and below set at 105 F).
- Special settings of higher or lower range available based on options
- Silent Operation (except for SPEX0122240T)
- Mounts in any orientation
- Flow meter activates heater only on demand (no standby heat loss)
- Install unit at point-of-use to eliminate long pipe runs
- Eliminate costly mixing valve
- Compact size fits almost anywhere for flexible installation; suitable for ADA compliant facilities
- Cover Material: ABS-UL 94 5VA
- Element Type: Replaceable cartridge - bare wire
- Element Material: Ni Chrome
Specs
–
| Kilowatts (KW): | 7.5 |
|---|---|
| Voltage: | 240v |
| Amperage: | 32 |
| Max Operating Pressure: | 140 PSI |
| Min Operating Pressure (PSI): | 30 |
| Max Pressure (PSI): | 150 |
| Width: | 5-1/4" |
| Min Flow (GPM): | 0.5 |
| Height (Inches): | 10.75" |
| Max Flow (GPM): | 2 |
| Fuel Type: | Electric |
| Efficiency: | 99% |
| Installation Type: | Under Sink |
| Flow Rate: | 0.5-2.0 GPM |
| Phase: | 1 |
| Flow Rate at 70F Temp Rise (GPM): | 0.7 |
| Flow Rate at 50F Temp Rise (GPM): | 1 |
| Flow Rate at 60F Temp Rise (GPM): | 0.9 |
| Flow Rate at 40F Temp Rise (GPM): | 2 |
| Depth (Inches): | 2-87/100" |
| Water Connection: | 1/2" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
Master Display Board, EX08300-00
SKU: EX08300-00
Eemax
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-3 of 3 reviews
Love the Eemax instant water heater
The product is great, but Supply House is simply AWESOME!!! Will definitely do business with them in the future.
Marty
Dandridge, TN
5 months ago
Verified Buyer
Was this review helpful to you?
Knowledgeable and Helpful People
Water heater worked perfectly. The support folks helped figure out which water heater I needed because the existing model had been discontinued many years ago.
MLM
Dandridge TN
1 years ago
Verified Buyer
Was this review helpful to you?
nice compact heater

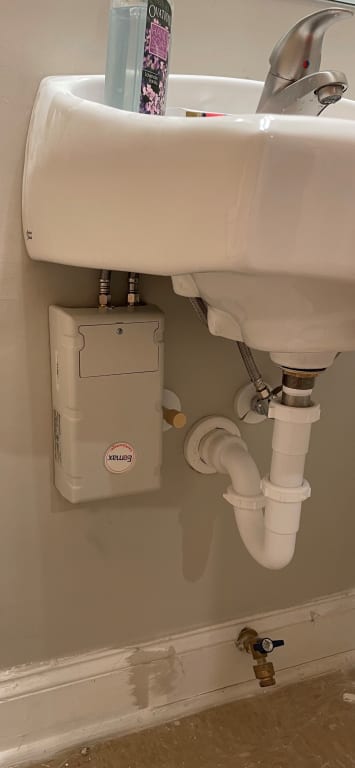

I bought this to replace a 3.5KW unit that just didn't put out enough heat for a single sink in commercial restroom. Fortunately, the wiring in the wall was 10-3 wired for 120V, so I just replaced the breaker and repurposed the neutral wire and viola 240V@30A. I like the adjustability of the temperature on this unit to dial in water that is warm enough for a comfortable hand washing.
I only wish Eemax would include a spare decal! The unit can be mounted in any orientation, but the sticker is already placed so that it is right-side up when the hookups are on the bottom. For my application, I replaced an existing Eemax unit with the connections at the top, so it looks upside down. If the decal was in the box, I could have placed it with a more visually appealing orientation.
brian
Raleigh, NC
5 years ago
Verified Buyer
Was this review helpful to you?
