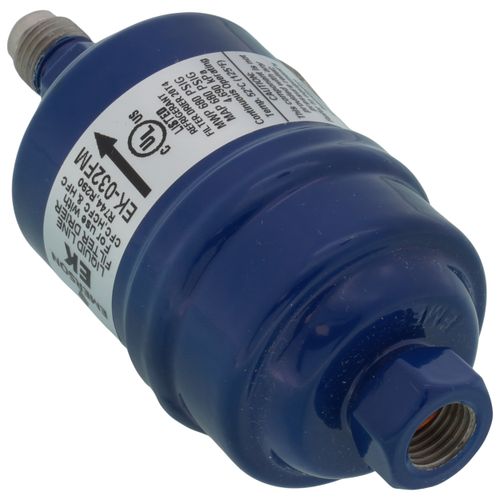

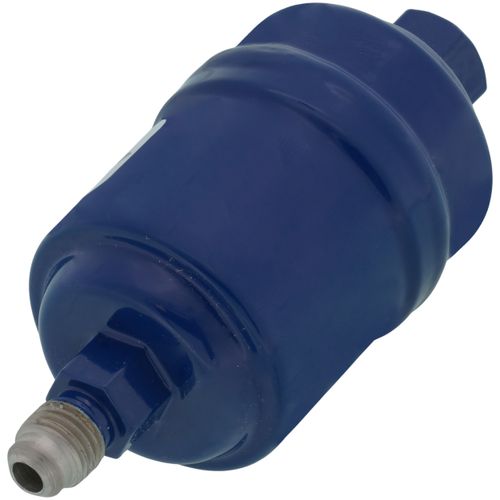

1/4" SAE EK032FM-Series Liquid Line Filter Drier (3 Cubic Inches)
Hover image to zoom

1/4" SAE EK032FM-Series Liquid Line Filter Drier (3 Cubic Inches)

SKU:
060011
Rating:
(0)
Q&A:
(0)
1/4" SAE EK032FM-Series Liquid Line Filter Drier (3 Cubic Inches)
Hover image to zoom
$11.60 each
In Stock
In Stock
Get 3 Wed, Jul 24
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Connection Size icon
1/4" Connection
Connection Type icon
SAE Flare Connection
Refrigerant Type icon
R-22, R-134A, R-12, R-404A, R-410A, R-507

Description

1/4" SAE EK032FM-Series Liquid Line Filter Drier

Emerson offers a complete series of filter driers for use with CFC, HCFC, and HFC refrigerants for air conditioning and refrigeration systems.

Liquid Line Hermetic Filter Driers

The Emerson hermetic filter drier provides superior filtration of contaminants, drying of the refrigerant, and removal of acids versus any other filter drier on the market, making it ideal for both the refrigerants of today and tomorrow.

Take-Apart Liquid and Suction Filter Driers

These replaceable core filter driers are ideal for large commercial air conditioning and refrigeration systems. Options include full flow fittings for low pressure drop, R-410A rated models, and corrosion resistant brass body with stainless steel bolts.

Filter Drier Cores and Filters

Filter drier cores remove moisture, acids, and debris from the system. Emerson has the broadest range of desiccant blends in the industry. Products range from 100% activated alumina (high acid) to 100% molecular sieve (high moisture). There is an Emerson core for every application, and all cores are completely interchangeable with other cores and shells.

Features:
  • Solid copper connections
  • High moisture and acid removal capacity
  • Corrosion resistant epoxy powder paint finish
  • Copeland? products approved for POE oils

Specifications:
  • Desiccant Blend: optimized for high water capacity and acid capacity
  • Filtration: 40 microns
  • Maximum working pressure: 680 psig
  • UL/CUL file number: SA 3124

Specs

Connection Size:

1/4"

Connection Type:

SAE Flare

Cubic Inches:

3

Product Type:

Filter Drier

Type:

Liquid Line

Micron Rating:

40

Max. Working Pressure:

680 PSI

Refrigerant Type:

R-22

R-134A

R-12

R-404A

R-410A

R-507
