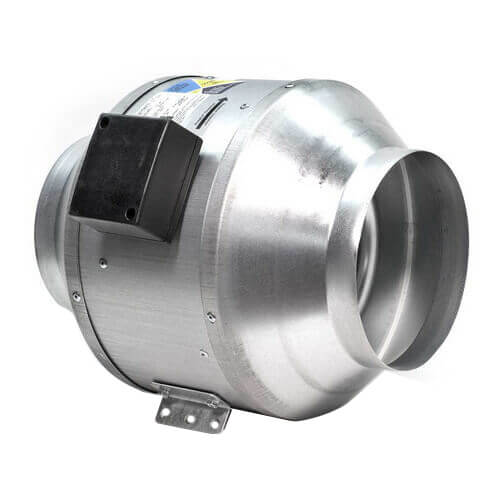

FKD 18XL Round Inline Mixed Flow Centrifugal Fan, 18" Duct, 230-460V (5,463 CFM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
498349 has been discontinued
Discontinued October 1, 2024
This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.
MANUALS (1)
This item replaces: FKD18XL
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
FKD Series Round Inline Mixed Flow Centrifugal Fan, 18" Duct (6,212 CFM)
Backorder
Get it Fri, Jul 17 - Tue, Aug 18
Product Highlights
–
5463 CFM
5 Year Limited Warranty
18"
230/460v
Description
–

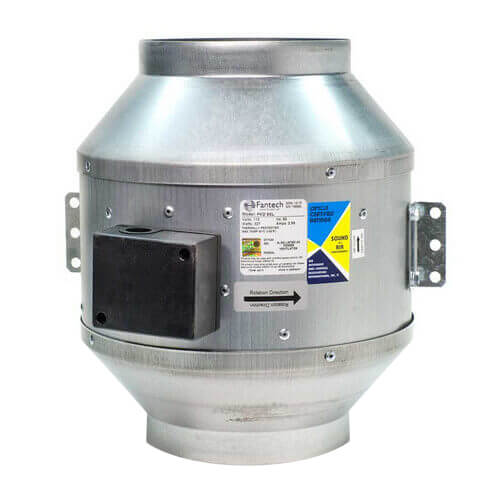

Note: Image depicted is a stock photo.
Fantech's direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, commercial bathrooms, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhausts.
Features:
Fantech's direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, commercial bathrooms, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhausts.
Features:
- Galvanized steel housing
- Built-in thermal overload protection with automatic reset
- Simplified lever-action, quick wiring terminals
- Mixed flow impeller enabling high static pressure
- Suitable for airstream temperatures up to 140°F
- Comes with fan brackets for quick and easy installation
- UL, CSA, HVI, and AMCA Air & Sound certified
- Limited five-year warranty
Specs
–
| Duct Size: | 18" |
|---|---|
| Voltage: | 230/460v |
| Air Flow Capacity (CFM): | 5463 |
| Housing Material: | Galvanized Steel |
| 0" Ps: | 5463 CFM |
| 0.5" Ps: | 5034 CFM |
| 0.75" Ps: | 4806 CFM |
| 1.0" Ps: | 4569 CFM |
| 1.5" Ps: | 4061 CFM |
| 2.0" Ps: | 3400 CFM |
| Warranty: | 5 Year Limited |
