FG Series Inline Round Centrifugal Exhaust Fans
FG Series Centrifugal Duct Fan, 4" Duct (160 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$273.00 each
In Stock
Get 21 Wed, Apr 30
Order by today, receive Wednesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
160 CFM
5 Year Warranty
4"
120v
2886 RPM
Description
–
Note this fan would be hardwired into its electrical terminal box and does not include a power cord
Featuring a galvanized steel housing, the Fantech FG 4XL EC Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120-volt model can produce a maximum airflow of up to 160 CFM. The FG 4XL EC is constructed with a 4" round duct. Fans include a bracket for mounting to a ceiling or wall. FG EC Series Inline Fans are rated for outdoor use. The FG 4XL EC is equipped with electronically commutated energy-efficient motor which uses up to 30% less energy than standard AC fans. Not only does energy-efficiency save on energy costs, but reduced heating during use increases the motor's lifespan and limits maintenance costs.
Product Features
Featuring a galvanized steel housing, the Fantech FG 4XL EC Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120-volt model can produce a maximum airflow of up to 160 CFM. The FG 4XL EC is constructed with a 4" round duct. Fans include a bracket for mounting to a ceiling or wall. FG EC Series Inline Fans are rated for outdoor use. The FG 4XL EC is equipped with electronically commutated energy-efficient motor which uses up to 30% less energy than standard AC fans. Not only does energy-efficiency save on energy costs, but reduced heating during use increases the motor's lifespan and limits maintenance costs.
Product Features
- Speed-controllable
- Built-in thermal overload protection with automatic reset
- Can be installed in any position and outdoors
- Maintenance-free and reliable

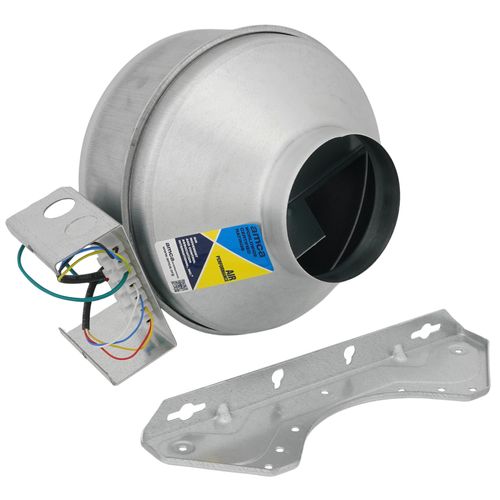

- Mounting bracket and hardware included
- Five-year factory warranty
Specs
–
| Duct Size: | 4" |
|---|---|
| Voltage: | 120v |
| RPM: | 2886 |
| Air Flow Capacity (CFM): | 160 |
| Warranty: | 5 Year |
| 0.2" Ps: | 166 CFM |
| 0.4" Ps: | 152 CFM |
| 0.6" Ps: | 135 CFM |
| 0.8" Ps: | 117 CFM |
| 1.0" Ps: | 97 CFM |
| 1.5" Ps: | 49 CFM |
