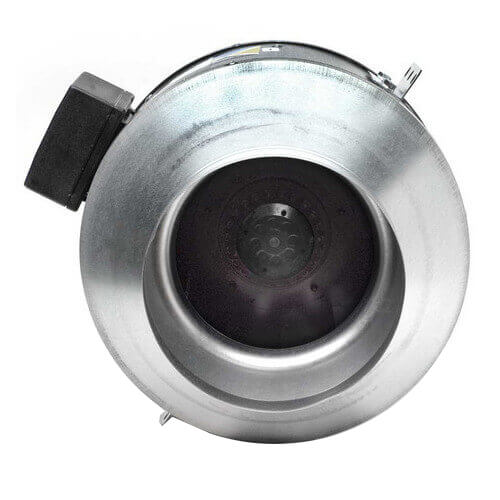

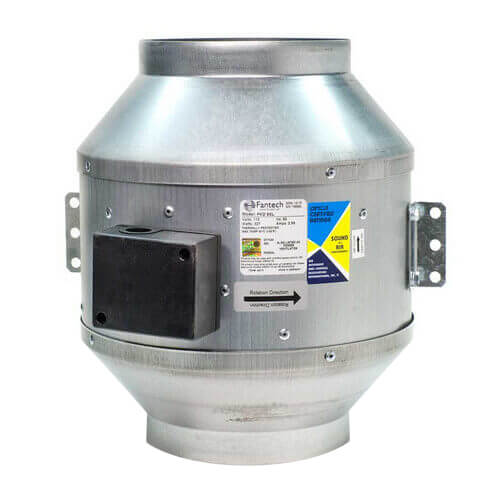

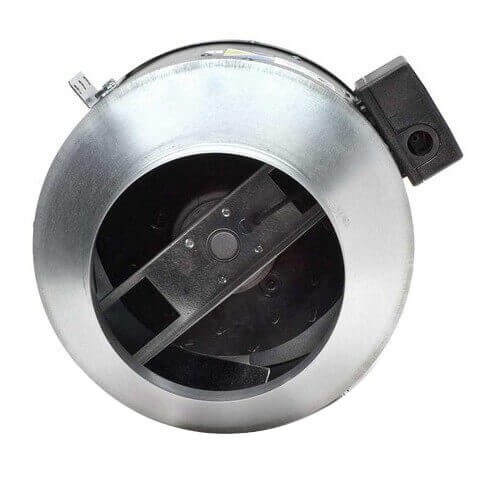

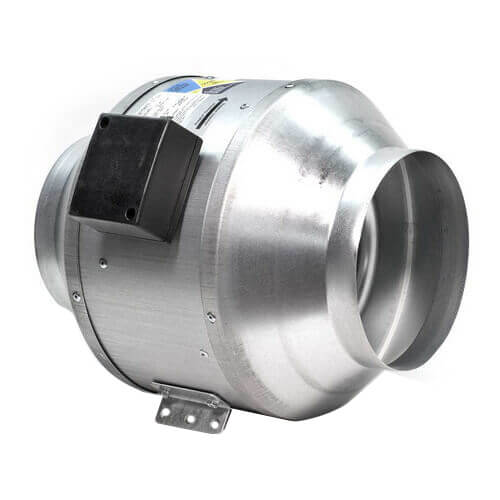

FKD Series Round Inline Mixed Flow Centrifugal Fan, 16" Duct, 230V (2,952 CFM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,893.29 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
This item replaces: 498340
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
6.39
2952 CFM
3 Year Warranty
16"
230V
1600 RPM
Description
–
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust.
Features:
Features:
- Galvanized steel housing
- External rotor motor with built-in thermal overload protection and automatic reset
- Mixed flow impeller
- Permanently lubricated sealed ball bearings
- Excellent heat dissipation to ensure long motor life
- Suitable for airstream temperatures up to 140°F
- 230 Volts
- 100% speed controllable
- Terminal box with prewired electrical strip
- Three-year warranty
Specs
–
| Duct Size: | 16" |
|---|---|
| Voltage: | 230V |
| RPM: | 1600 |
| Air Flow Capacity (CFM): | 2952 |
| Rated Watts: | 742 |
| Max. Amps: | 6.39 |
| Housing Material: | Galvanized Steel |
| Warranty: | 3 Year |
