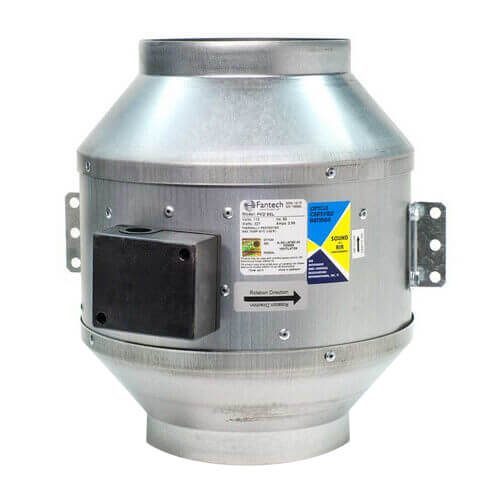

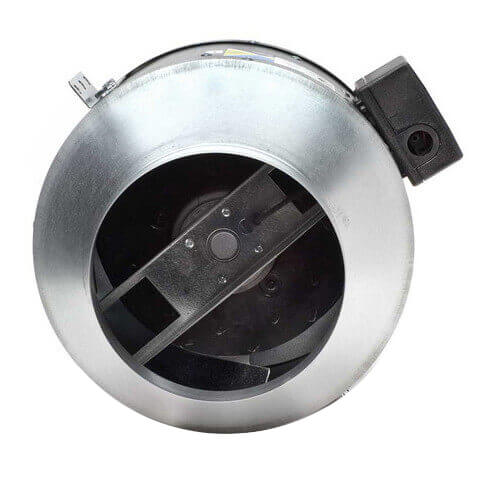

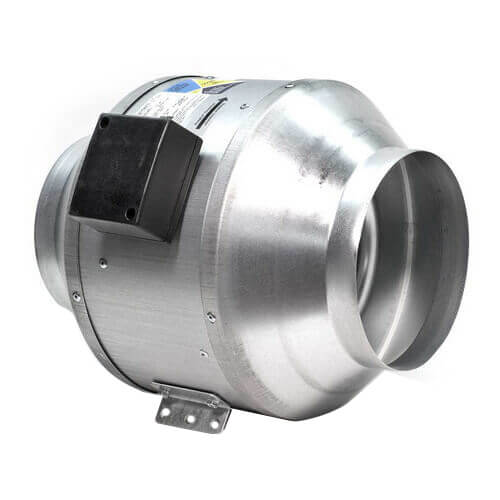

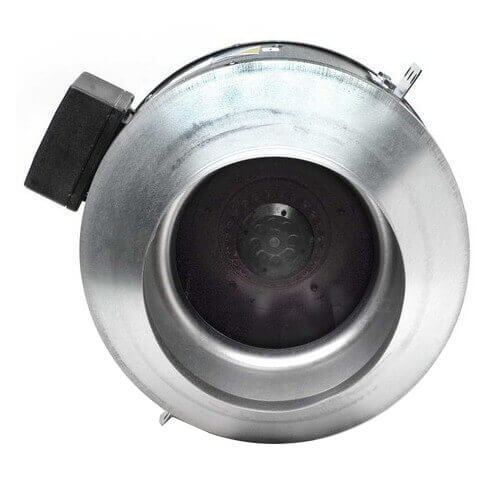

FKD Series Round Inline Mixed Flow Centrifugal Fan, 16" Duct (4,274 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,572.70 each
In Stock
Get 2 Wed, Jul 8 - Fri, Jul 10
MANUALS (2)
This item replaces: 498342
Lift Gate
–
This product weighs 94 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
12.40
4274 CFM
3 Year Warranty
16"
115V
1600 RPM
Description
–
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust.
Features:
Features:
- Galvanized steel housing
- External rotor motor with built-in thermal overload protection and automatic reset
- Mixed flow impeller
- Permanently lubricated sealed ball bearings
- Excellent heat dissipation to ensure long motor life
- Suitable for airstream temperatures up to 140°F
- 100% speed controllable
- Terminal box with prewired electrical strip
- Three-year warranty
Specs
–
| Duct Size: | 16" |
|---|---|
| Voltage: | 115V |
| RPM: | 1600 |
| Air Flow Capacity (CFM): | 4274 |
| Rated Watts: | 1421 |
| Max. Amps: | 12.40 |
| Housing Material: | Galvanized Steel |
| Warranty: | 3 Year |
| 0" Ps: | 4274 CFM |
| 0.2" Ps: | 4090 CFM |
| 0.4" Ps: | 3900 CFM |
| 0.6" Ps: | 3655 CFM |
| 0.8" Ps: | 3317 CFM |
| 1.0" Ps: | 3137 CFM |
| 1.5" Ps: | 2379 CFM |
| 2.0" Ps: | 1242 CFM |
