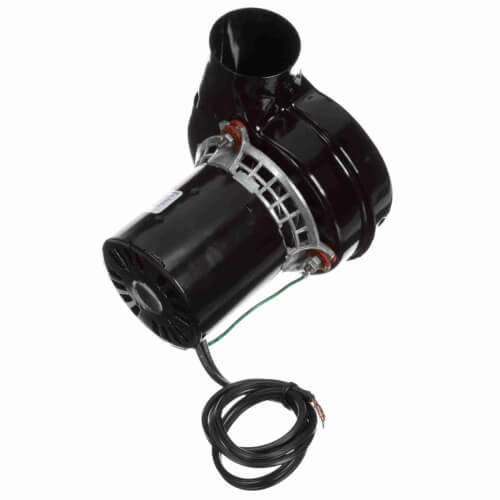

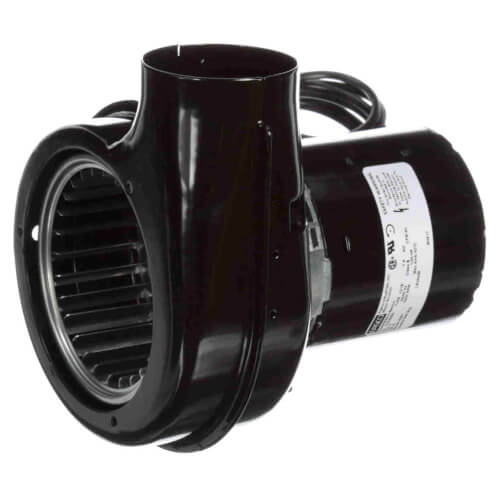

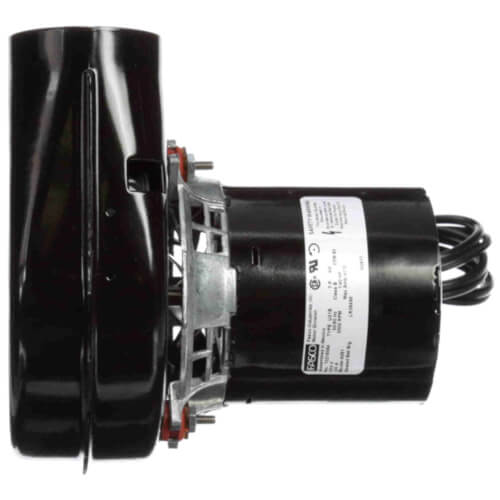

1-Speed 3100 RPM 80 CFM 1/40 HP Magic Chef Draft Inducer Motor (230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$173.84 each
In Stock
Get 24 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
1/40 HP
3000 RPM
CCW
0.45 Amps
80 CFM
Description
–
Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part number
1-Speed 3100 RPM 80 CFM 1/40 HP Draft Inducer Motor (230V)
Replaces Magic Chef/HWC Series 48HWC24A, 48HWC181, 35HWC181, 60HW, 60HWCC24A, 60HWC181, 48HW, 60HWC30A, 66HWC18A, 36HWC241, 66HW, 60HWC241, 66HWC181, 66HWC241, 60HWC301, 48HWC241, 66HWC301, 48HWC18A, 60HWC18A, 36HWC18A, 66HWC24A, 36HW, 36HWC24A
**Note: Image may not represent actual product**
1-Speed 3100 RPM 80 CFM 1/40 HP Draft Inducer Motor (230V)
Replaces Magic Chef/HWC Series 48HWC24A, 48HWC181, 35HWC181, 60HW, 60HWCC24A, 60HWC181, 48HW, 60HWC30A, 66HWC18A, 36HWC241, 66HW, 60HWC241, 66HWC181, 66HWC241, 60HWC301, 48HWC241, 66HWC301, 48HWC18A, 60HWC18A, 36HWC18A, 66HWC24A, 36HW, 36HWC24A
**Note: Image may not represent actual product**
Specs
–
| Voltage: | 230V |
|---|---|
| Amperage: | 0.45 |
| Speeds: | 1 |
| Air Flow Capacity (CFM): | 80 |
| Horse Power: | 1/40 |
| RPM: | 3000 |
| OEM: | Magic Chef |
| Rotation: | CCW |
| Bearings: | Ball |
| Outlet Shape: | Round |
| Type: | Shaded Pole |
| Outlet Flange: | No |
| Approvals: | CSA UL |
| Hertz: | 50/60 |
| Max Ambient Temp (°F): | 104°F |
| Enclosure Type: | Open |
| Insulation Class: | B |
| Overload Protection: | Thermally |
| Phase: | 1 |
