$508.23 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1/18 HP
3500 RPM
CW
0.62 Amps
Description
–

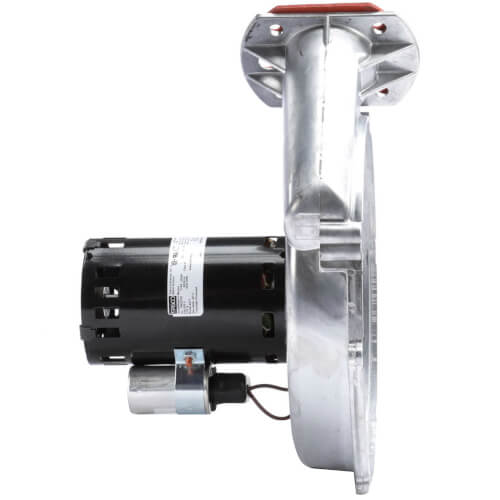

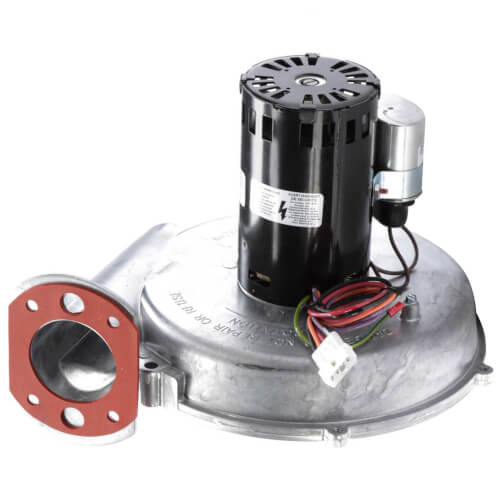

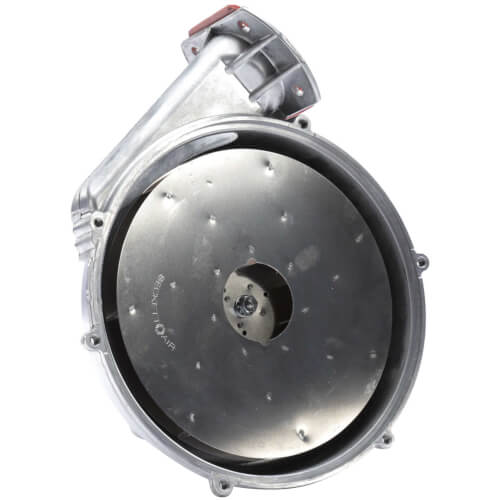

2-Speed 3500 RPM 1/18 HP Blower Motor (208/230V)
Replaces Trane 7062-3969
**Note: Image may not represent actual product**
Replaces Trane 7062-3969
**Note: Image may not represent actual product**
Specs
–
| Voltage: | 208/230V |
|---|---|
| Amperage: | 0.62 |
| Speeds: | 2 |
| Horse Power: | 1/18 |
| OEM: | Trane |
| RPM: | 3500 |
| Rotation: | CW |
| Bearings: | Ball |
| Type: | Permanent Split Capacitor |
| Outlet Shape: | Round |
| Outlet Flange: | Yes |
| Approvals: | CSA UL |
| Hertz: | 60/50 |
| Max Ambient Temp (°F): | 104°F |
| Enclosure Type: | Open Fan Cooled |
| Insulation Class: | B |
| Overload Protection: | Thermally |
| Phase: | 1 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
You May Also Need
Product Reviews
3 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
0%
3 star
0%
2 star
0%
1 star
50%
Showing 1-2 of 2 reviews
1st time disappointed
disappointed for the first time because the part was missing the gasket and sight glass as it is supposed to come with, plus the part cans 2 days late. . I had to deal with a unhappy customer. I ordered this part 5 tmes and it came on time and with all the parts that I mentioned . I understand about delivery delays but not when part doesn't come with all necessary parts. Also the missing gasket and glass still didn't get here!!
Anthony
NY
4 years ago
Verified Buyer
Was this review helpful to you?
High Quality Trane Replacement Parts
This is an exact factory replacement for a large Trane roof top unit.
Install took about 10 minutes, a few bolts, no wiring just plug in. Gaskets are included and you reuse the old bolts. Saved me on a Midwest -30 deg. day.
Supplyhouse made it easy to source a hard to find Trane part, I found the part number on a Fasco cross reference chart via internet search, Supplyhouse part is the same part number...EASY
Did I mention next day free shipping!
THANKS SUPPLYHOUSE!
SteeVee
Midwest is Best
8 years ago
Verified Buyer
Was this review helpful to you?
