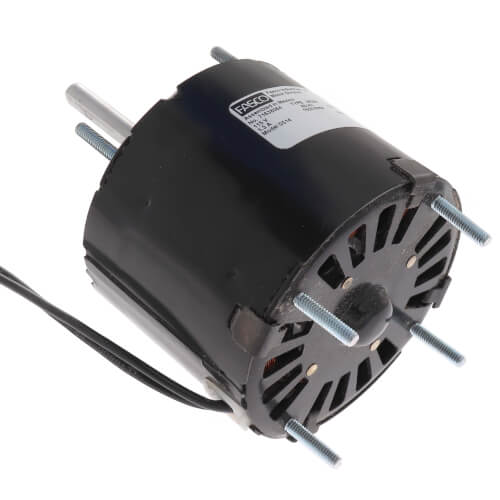

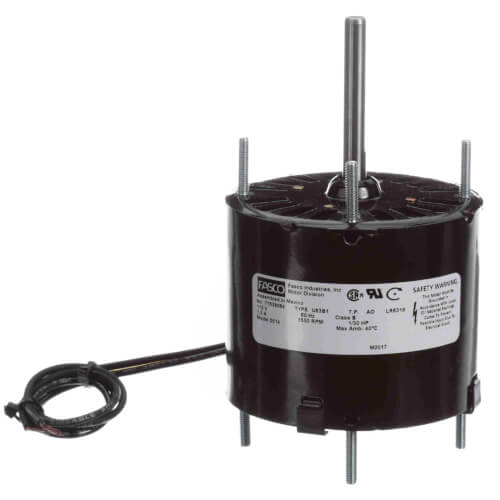

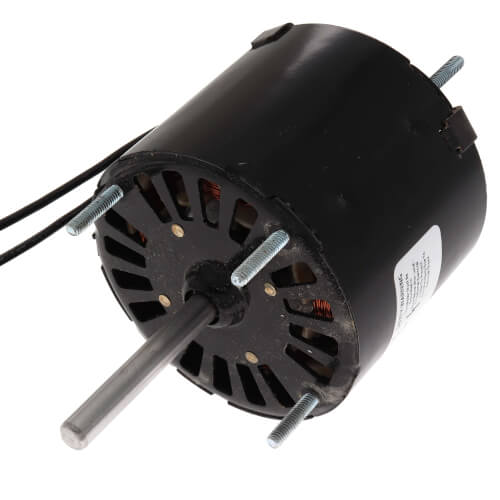

Main product image of 1-Speed 1500 RPM General Purpose Motor (1/30 HP, 115V)
Magnifying glass
Hover image to zoom

1-Speed 1500 RPM General Purpose Motor (1/30 HP, 115V)

Brand:
Fasco
SKU:
D514
Rating:
(1)
Q&A:
(0)
1-Speed 1500 RPM General Purpose Motor (1/30 HP, 115V)
Magnifying glass
Hover image to zoom
$111.58 each
In Stock
In Stock
Get 20 Tomorrow, Aug 20
Order by 2PM, receive Tomorrow

MANUALS (1)

Specification Sheet
Specification Sheet
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: RPM
1500 RPM
Product Highlight: Rotation
CWSE
Product Highlight: Horse Power
1/30 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
1.3 Amps

Description

–
  • Motor Type: Shaded Pole
  • RPM: 1500
  • HP: 1/30
  • Volts: 115
  • Amps: 1.3
  • Hz: 60
  • Phase: Single Phase
  • Thermal Protection: Automatic
  • Speeds: 1
  • Rotation: CW Shaft End
  • Bearings: Sleeve
  • Enclosure Type: Open Air Over (OAO)
  • Frame Size: 3.3" Frame
  • Motor Diameter (In.): 3.3
  • Motor Length (In.): 2 3/4
  • Shaft (In.): 5/16 X 2 1/4
  • Bolt Circle (In.): 2-27/32 (2.85)
  • Ship Weight: 4 lbs.
  • Agency Approvals: UL, CSA

    • Specs

    –
    Type:

    Shaded Pole

    RPM:

    1500

    Horse Power:

    1/30

    Voltage:

    115V

    Amperage:

    1.3

    Phase:

    1

    Rotation:

    CWSE

    Enclosure Type:

    Open Air Over

    Mount:

    Extended Studs

    Speeds:

    1

    Frame Size:

    3.3

    Max Ambient Temp (°F):

    104°F

    Bearings:

    Sleeve

    Duty:

    Air Over

    Frequency:

    60 Hz

    Insulation Class:

    B

    Poles:

    4

    Overload Protection:

    Thermally

    Approvals:

    UL
