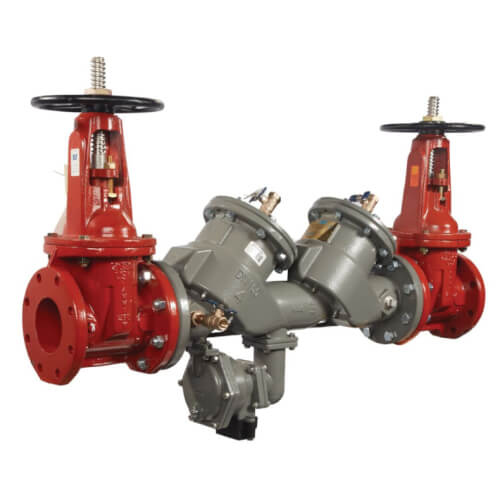

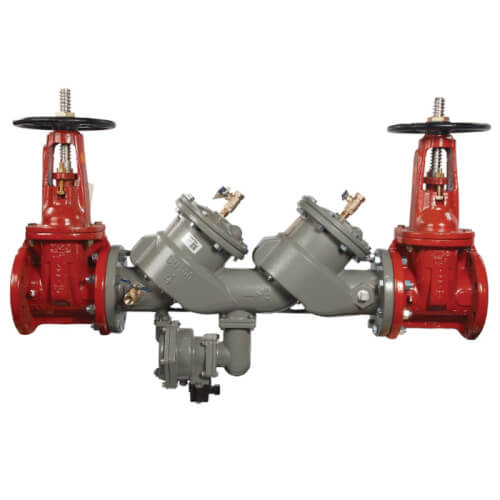

6" LF860-OSY-FS Lead Free MasterSeries Reduced Pressure Zone Assembly, OSY Shutoff, w/ Flood Sensor Connectivity

This 6" lead free MasterSeries® reduced pressure zone backflow preventer assembly help protect against high hazard (toxic) fluids in water services to industrial installations and applications. This assembly with outside stem and yoke shutoff valves consists of a lead free, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve. The ductile iron body is fused with patented 3-part ArmorTek® epoxy coating for advanced corrosion resistance. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. The coating on this backflow assembly uses ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Ductile Iron
• Inlet Connection Size: 6"
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 6"
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Protection Type: Backpressure and Backsiphonage
• Series: LF860-FS Large
