$244.34 each
In Stock
Get 10 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 765EBV
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
Bronze
150 MAX PSI
FNPT x FNPT Connection
140°F Max Temp
6.5"
Description
–

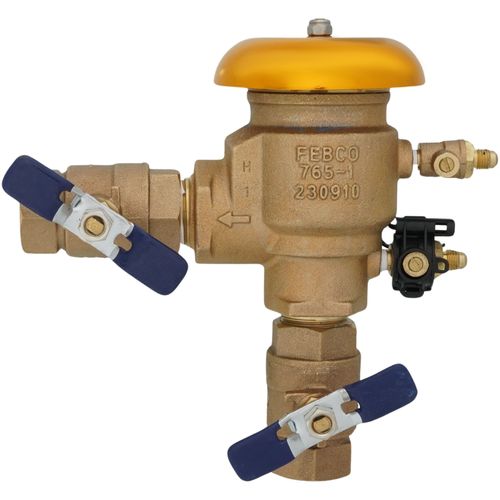

This 1 inch pressure vacuum breaker backflow preventer is used to protect against health hazard and non-hazard backsiphonage of toxic or non-toxic liquids in industrial plants, cooling towers, laboratories, laundries, swimming pools and irrigation systems. It has a bronze body, spring loaded check valve, air relief valve with opening port, two resilient seated shutoffs and test cocks, and NPT end connections. This assembly meets the specifications of the USC FCCCHR Manual. The maximum working pressure is 150 psi (10.3 bar) and temperature range is 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C). The pressure vacuum breaker includes a freeze sensor for use with SentryPlus Alert® technology to signal when ambient temperature approaches the freeze threshold. Activated through an add-on connection kit, the sensor also triggers freeze alerts to facility personnel. Connection kit available for building/irrigation management system (BMS/IMS).
Product Features:
Product Features:
- Includes a freeze sensor for use with SentryPlus Alert technology to signal when temperature nears the freeze point
- Freeze alerts feature available with add-on connection kit
- Bronze body for durability
- Designed for minimum head loss
- Plastic bonnet protects valve body from freeze damage
- Internal parts serviceable in line from top of unit
- Maximum pressure of 150 psi
Specs
–
| Connection Type: | FNPT x FNPT |
|---|---|
| Size: | 1" |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 140°F |
| Hydrostatic Test Pressure: | 300 PSI |
| Application: | Plumbing |
| Material: | Bronze |
| Height: | 6.5" |
