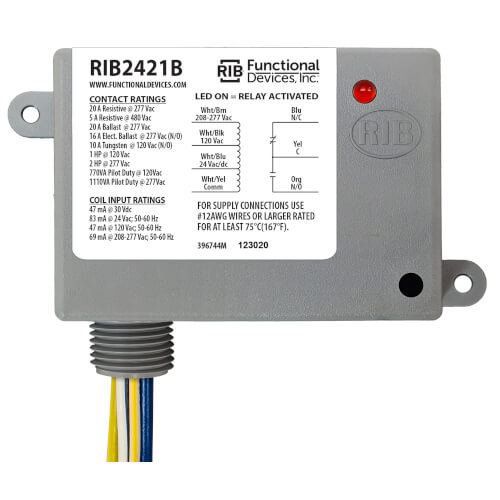

Enclosed Relay 20 Amp SPDT with 24 Vac/dc/120 Vac/208-277 Vac Coil

SKU:
RIB2421B
Rating:
(0)
Q&A:
(0)
Enclosed Relay 20 Amp SPDT with 24 Vac/dc/120 Vac/208-277 Vac Coil
Hover image to zoom

Enclosed Relay 20 Amp SPDT with 24 Vac/dc/120 Vac/208-277 Vac Coil

SKU:
RIB2421B
Rating:
(0)
Q&A:
(0)
$32.10 each
In Stock
In Stock
Get 15 Wed, Feb 8
More Available
Fast Track Logo
Order by 4PM, receive Wednesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
Voltage icon
277v, 24v, 208v, 120v
Amperage icon
20 Amps
Description
Enclosed Relay 20 Amp SPDT with 24 Vac/dc/120 Vac/208-277 Vac Coil

Specifications:
  • # Relays & Contact Type: One (1) SPDT Continuous Duty Coil
  • Expected Relay Life: 10 million cycles minimum mechanical
  • Operating Temperature: -30 to 140° F
  • Humidity Range: 5 to 95% (noncondensing)
  • Operate Time: 18ms
  • Relay Status: LED On = Activated
  • Dimensions: 2.30" x 3.20" x 1.80" with .50" NPT Nipple
  • Wires: 16", 600V Rated
  • Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
  • Housing Rating: UL Accepted for Use in Plenum, NEMA 1
  • Gold Flash: No
  • Override Switch: No
Specs
Amperage:

20

Type:

SPDT

Voltage:

277v

24v

208v

120v

Resistive:

20A
