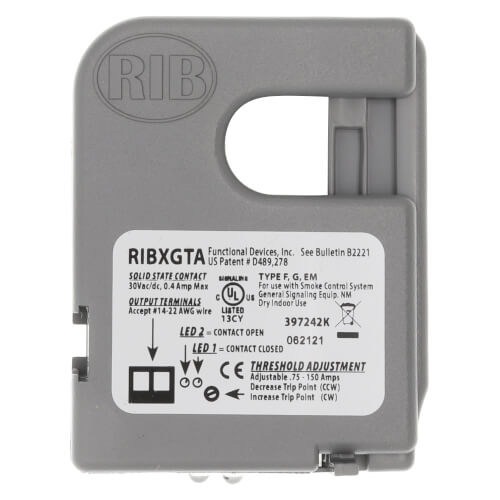

Split Core, Adjustable Current Switch, 0.75-150 Amp, Terminal
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$35.60 each
In Stock
Get 154 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
30V
Description
–
Split Core, Adjustable Current Switch, 0.75-150 Amp, Terminal
Specifications:
Specifications:
- Operating Temperature: -30 to 140° F
- Humidity Range: 5 to 95% (noncondensing)
- Max Sense Voltage: 600 Vac
- Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS

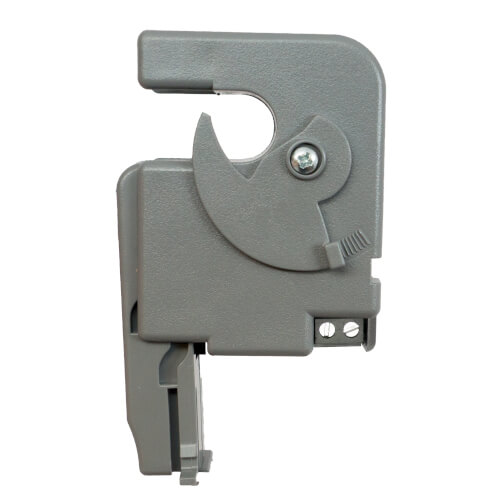

- Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place.
- Sensor Contact Status: Current below threshold: Open / Current above threshold: Closed
- Sensor Contact: Solid State Contact, when sensor contact is off (open) leakage <30 uA @ 30Vac/dc; when sensor contact is on (closed), voltage drop < .3 Vac/dc @ .1 Amp < 1.6 Vac/dc @ .4 Amp
- Maximum Switching Current: .4 Amps
- Sensor Contact Termination: Terminal Strip, Accepts #14-22 AWG Wire
- LED 1: Over Trip Point
- LED 2: Under Trip Point
Specs
–
| Voltage: | 30V |
|---|---|
| Sensor Range: | 0.75-150 Amp |
| Type: | SPST |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Great AC sensor! Supply House is always my #1 source
Functional Devices make great products. I have used their relays. My first AC sensor had a minor issue and both Functional Devices and Supply House handled the issue with lightening speed. I had a replacement the very next day. The support at Functional Devices and the amazing Customer Service of Supply House is why I look no further. I can't say enough about my great experiences with these two companies. I am impressed every time I do business with Supply House.
JD
Portersville, PA
2 years ago
Verified Buyer
Was this review helpful to you?
I would use this again.
Product worked well for our project.
KNZ
Lowell Indiana
2 years ago
Verified Buyer
Was this review helpful to you?
Great product
Accurate and does its job. Fantastic Product.
Cycletech
PA
4 years ago
Verified Buyer
Was this review helpful to you?
