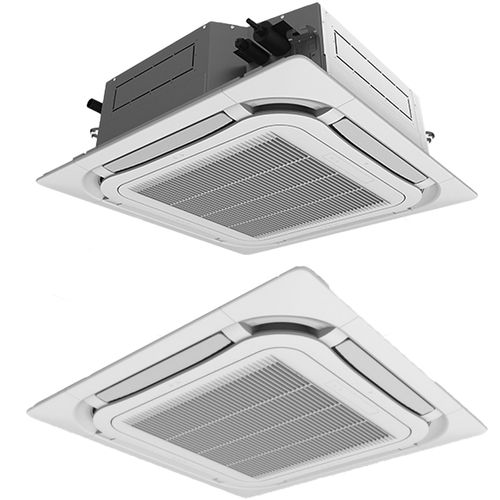

9,000 BTU All Match 360 Ceiling Cassette Mini Split Air Conditioner, R32, 230V (Indoor Unit) & All Match 360 Cassette Decorative Grille - 18K
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
The CAS09HP230V1R32AK package includes the 9,000 BTU All Match 360 Ceiling Cassette Mini Split Air Conditioner, R32, 230V (Indoor Unit) (CAS09HP230V1R32AH) and the All Match 360 Cassette Decorative Grille - 18K (GREETF05).
Package Includes:
(1) CAS09HP230V1R32AH: 9,000 BTU All Match 360 Ceiling Cassette Mini Split Air Conditioner, R32, 230V (Indoor Unit)
Experience versatile and efficient climate control with the Gree R32 All Match 360 Ceiling Cassette Air Handler. Designed for both performance and aesthetics, this CAS09HP230V1R32AH ceiling cassette unit brings advanced technology, ultra-quiet operation, and precise airflow management to residential or light commercial spaces.
Product Overview
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 9,000 BTU/h
- SEER2: Up to 24.5
- EER2: Up to 15.5
- HSPF2: Up to 9.5
- Refrigerant: R32
- Cooling Operating Range: -20°F to 122°F
- Heating Operating Range: -22°F to 86°F
Key Features
- Energy Efficient: Featuring high-efficiency DC inverter technology, the unit optimizes energy use while delivering consistent heating and cooling. This dynamic system adjusts power output in real time, ensuring superior energy savings and optimal indoor comfort.
- Wide Temperature Range: Operates efficiently in extreme conditions, cooling from -20°F to 122°F and heating from -22°F to 86°F.
- Quiet Operation: Engineered for low noise levels, ensuring a comfortable indoor environment.
- Smart Controls: Wi-Fi enabled for easy remote operation via smart devices.
- Eco-Friendly Refrigerant: Uses R32 refrigerant for reduced environmental impact.
- Auto-Clean Function: Helps prevent mold and bacteria buildup for better air quality.
- Compact & Modern Design: Wall-mounted unit blends seamlessly into any space.
Ideal Applications
- Large residential rooms or open-concept spaces
- Commercial environments such as offices and retail stores
- Any area requiring efficient and quiet climate control
(1) GREETF05: All Match 360 Cassette Decorative Grille - 18K
The Gree decorative grille is required for operation of a Gree All Match 360 18,000 BTU ceiling cassette. The grille features directional louvers for a 4-way supply of conditioned air while the center protects the return.Compatible Indoor Units:
Ceiling Cassettes:
- CAS09HP230V1R32AH
- CAS12HP230V1R32AH
- CAS18HP230V1R32AH
Specs
| Heating Capacity (BTU): | 10500 |
|---|---|
| SEER2: | 24 |
| Weight (lbs): | 37.5 lbs |
| EER2: | 15 |
| Height (Inches): | 22-7/16" |
| Application: | Heating Cooling |
| Max Pipe Length (FT): | 131' |
| Liquid Line: | 1/4" |
| Max Airflow (CFM): | 330 |
| HSPF2: | 9.2 |
| Warranty: | 7 Year (Compressor)/5 Year (Parts) |
| Product Type: | Bundle |
| Min Airflow (CFM): | 206 |
| Connection Type: | Flare |
| Cooling Capacity (BTU): | 9100 |
| Series: | Cassette |
| Outdoor dB(A): | 40 |
| Number of Zones: | 1 |
| Depth (Inches): | 10-7/16" |
| Dehumidification (Pts/Hr): | 2.96 |
| Refrigerant Type: | R-32 |
| Width (Inches): | 22-7/16" |
| Voltage: | 208/230V |
| Energy Star Rated: | Yes |
