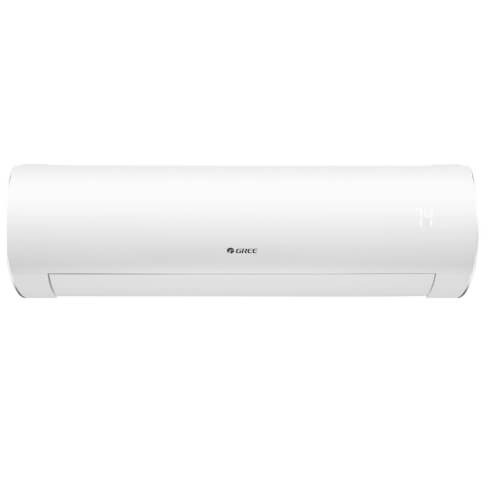

24000 BTU, R-410A, Sapphire Ultra Single Zone Wall Mounted Mini Split Heat Pump (Indoor Unit)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
SAP24HP230V1AH has been discontinued
Discontinued March 6, 2025
This product was discontinued by the manufacturer.
MANUALS (7)
Product Highlights
–
24000 BTUs
24000 BTUs
1/4"
5/8" SL
1
R-410A
Description
–
This R410A unit is no longer manufactured as per the AIM Act of 2020. While replacement parts are available for repairs, a new unit will require replacing the entire system to support the new A2L R32 refrigerant.
Please visit our Central Air Packages for system selection or reach out to Customer Care Team Contact Us for assistance.
Product Features:
- AHRI Certificate: 10157571
- High Efficiency DC Inverter Technology
- Elegant and Quiet Design
- Auto-Clean Function on Indoor Unit
- Wireless Remote with LCD Display
- Wired Controller Options
- Wi-Fi Included (Factory Installed)
- Low Ambient Cooling down to 0°F (Range 0°F to 129°F)
- Low Ambient Heating down to -22°F (Range -22°F to 75°F)
- Coil (Outdoor) Copper Tube/Aluminum Fin with Anti-Corrosion
- Coil Coating (Gold Colored Fin - 1500Hr Salt Spray Rating)
- Coil (Indoor) Copper Tube/Aluminum Fin with Anti-Corrosion
- Coil Coating (Blue Colored Fin - 500Hr Salt Spray Rating)
Specs
–
| Product Type: | Indoor Unit |
|---|---|
| Heating Capacity (BTU): | 24000 |
| Cooling Capacity (BTU): | 24000 |
| Application: | Heating Cooling |
| Model: | Sapphire Ultra |
| Number of Zones: | 1 |
| Max Pipe Length (FT): | 164 |
| Refrigerant Type: | R-410A |
| Voltage: | 208/230V |
| Dehumidification (Pts/Hr): | 1.69 |
| Mount: | Wall |
| Phase: | 1 |
| Hertz: | 60 |
| Liquid Line: | 1/4" |
| Suction Line: | 5/8" |
| Energy Star Rated: | Yes |
| Weight (lbs): | 35.3 lbs |
| Warranty: | 7 Year (Compressor)/5 Year (Parts) |
