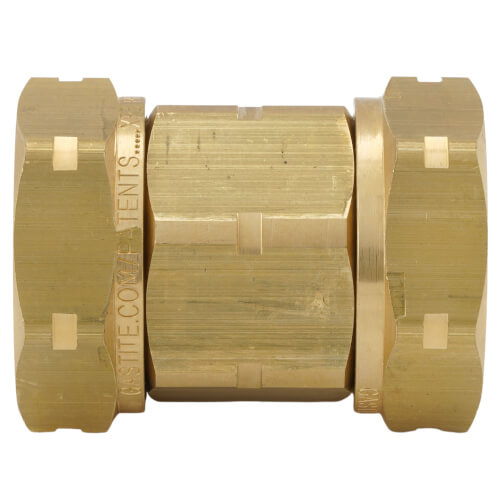

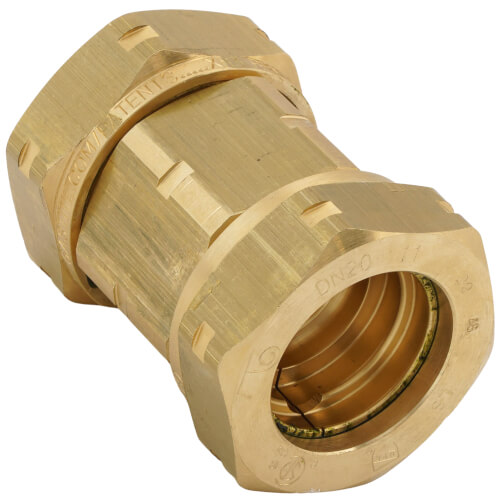

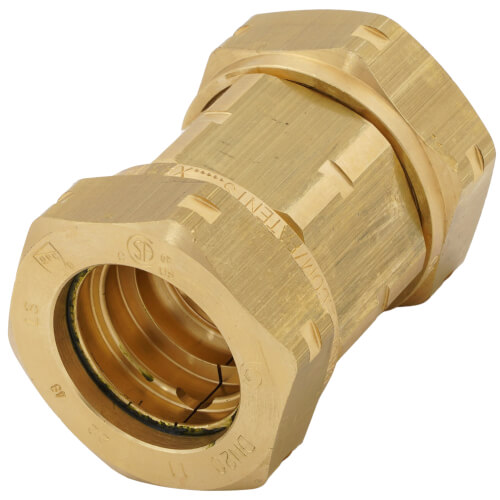

3/4" Coupling

Description:

FlashShield is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA , ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing. The Jacket-LockTM and Metal locking features provide steel tubing protection and continuous conductivity

Applications:

XR3 fittings are designed with a patened feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation. With no o-rings or gaskets, the reusable brass components provide a reliable metal-to-metal seat.Couplings allow for the splicing and additions to the flexible gas tubing.

 Features:

• Coupling Body, (2) Split Bushings, (2) Nuts
• Approved for Concealed Use
• Tool-Less Flare Fitting Design
• Metal-to-Metal Seal
• Multi-Point Seal
• Self-Guiding Fitting Assembly
• Jacket-LockTM Feature
• Metal Locking Feature
• Fully Reusable Fitting

Listings:

• CSA Certificate 2728525
• ICC-ES Report No. PMG 1066 and PMG 1155
• IAPMO: File No. C-3250 and Report No. 0239

Technical Data:

• Max. Approved Operating Pressure 25 psi
• Operating Temperature Range -40°F to 160°F
• Fitting Material CA360
