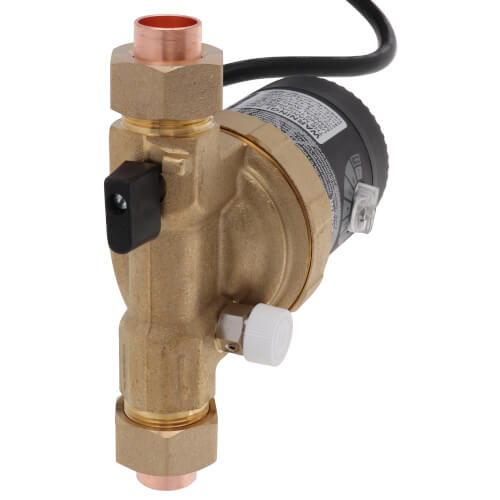

E1-BCUVNNNW-01 Circulating Pump w/ Adjustable Speed & Plug (1/2" Union)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Designed with the highly efficient electronically commutated permanent magnet motor (ECM technology), this revolutionary pump consumes 40% less energy while delivering an added variable speed technology that offers further power savings. Through microprocessor technology the motor is provided the precise frequency and voltage for optimum performance. This pump provides instant availability of hot water, even at the tap farthest from the hot water heater, therefore, reducing the amount of wasted water. This model has a thermostat with and adjustable Set Point range from 68ºF to 158ºF. The built-in temperature sensor will turn the circulator off when it reaches the Set Point and turn the circulator on when the temperature is more than 10ºF (6ºC) below the Set Point.
Product Features
- Saves 68% electricity compared to a standard circulating pump
- Highly efficient ECM Technology
- Long lasting, silent operation
- Resistant to scale build up
- Maintenance free without blockage, extended service life
- Single bearing design
- Shaftless and sealless
- Built-in ball and check valve; 1/2" Sweat Union connections and bleeder valve
Specs
| Material: | Brass |
|---|---|
| Type: | Dedicated |
| Lead Free: | Yes |
| Max. Working Temp (F): | 203°F |
| Max Pressure (PSI): | 145 |
| Voltage: | 100v - 240v |
| Hertz: | 60 |
| Flow Rate (GPM): | 6 |
| Connection Size: | 1/2" |
| Connection Type: | Union |
| Motor: | ECM |
| Application: | Domestic Hot Water |
Questions?
You May Also Need
Product Reviews
Instant Heat again!
Needed new circ pump
Product Q&A
1 QuestionQ: I would like to use a smart plug on this pump. The plug is rated for a max of 15 Amps and 1800 Watts. Is that ok? I couldn't find the amp rating in the specs.
Asked by Paul 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Paul. Yes, that is ok since this pumps draws 0.7 amps at 120V (84 watts).
