52722377 has been discontinued
Discontinued March 4, 2020
This product was discontinued by the manufacturer.
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Suggested Alternative:
UPS26-150F 3-Speed Cast Iron Circulator Pump 208/230V, 1/2 HP
Product Highlights
–
230V
1/6 HP
Flanged x Flanged Connection
37 MAX GPM
145 MAX PSI
Cast Iron
Description
–
Features:
- Built-in motor protection for long life
- Multiple accessories for a variety of applications
- Whisper-quiet operation for sound sensitive installations
- Pump Connection: GF 15/26 Flange
Specs
–
| Application: | Heating |
|---|---|
| Material: | Cast Iron |
| Amperage: | 1.8 |
| Voltage: | 230V |
| Horse Power: | 1/6 |
| Hertz: | 60 |
| Phase: | 1 |
| Type: | 1-Speed Pump |
| Temperature Range (F): | 32°F - 150°F |
| Max Flow (GPM): | 37 |
| Flow Range (GPM): | 0-37 |
| Max Head (Ft): | 37 |
| Head Range (ft.): | 0-37 |
| Max Pressure (PSI): | 145 |
| Connection Size: | 1" 1-1/2" 3/4" 1-1/4" |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Voltage
Type
Temperature Range (F)
Max Flow (GPM)
Max Pressure (PSI)
CURRENT ITEM
230V
1-Speed Pump
32°F - 150°F
37
145
4 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.75 out of 16 reviews
87% would recommend this product
5 star
81%
4 star
13%
3 star
6%
2 star
0%
1 star
0%
Most Liked Positive Review
Great Product, Great Price
I was looking for a UP26-116F 230V circulator for my buffer tank loop on my Ground Source Heat Pump. PexSupply had the best price on the net for a 230V 116F. The pump works great - Hey, it's a Grundfos - just set it and forget it.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Get a better Grundfos Pump
This pump did not last 9 months the first time I installed it. We have other Grundfos pumps and they last a long time. The first pump was noiser then the second pump I installed. They are changing these pump for the better, I could not get this exact pump from my local supplier. They are going to a 3 speed pump for easyer starting.
Showing 1-10 of 16 reviews
Fast and what I ordered
Part of my geothermal system and works great
Hammer'n Hank
Oak Harbor, Ohio
7 years ago
Verified Buyer
Was this review helpful to you?
Great pump put needs a stronger body
This is the 2nd time I bought this pump for my geothermal HVAC. They tend to rust and have pin siz holes on the body, leaking water. The last one lasted 5 years; which is better than my neighbors' pumps which lasted 2-3 years.
YavuZ
Irving TX
7 years ago
Verified Buyer
Was this review helpful to you?
I was satisfied with replacement pump
I replaced a 15 year old Grundfos in use on a geothermal heat pump system. has been working well now with the new pump.
Robert
Dripping Springs, TX
8 years ago
Verified Buyer
Was this review helpful to you?
i WOULD BUY THIS AGAIN FROM SUPPLY HOUSE
I bought this as a future backup - but very happy with the delivery and price
Karen from Pompey
Pompey, NY
8 years ago
Verified Buyer
Was this review helpful to you?
Git my system up and running in minutes.
Wish I could buy the pump without the manifold as it was not needed in my application.
Mickey
Cumming GA
8 years ago
Verified Buyer
Was this review helpful to you?
the pump was perfect thanks
the pump was an exact fit and worked out great
jimbo
w. harrison, ny
9 years ago
Verified Buyer
Was this review helpful to you?
Cheap and fast
The same part as everyone else but cheaper and fast.
Scott
Mena Arkansas
9 years ago
Verified Buyer
Was this review helpful to you?
Solid built pump
In service a few weeks...so far, no issues. Got lucky & just swapped out the pump itself from old housing on geo thermal heat pump. Super fast next day delivery( at extra cost) & excellent cust service when told was an emergency repair...ordered at 3...was shipped at 4:30!!!
Frank
SC
10 years ago
Verified Buyer
Was this review helpful to you?
Water Furnace flow control
Product is durable and very reliable.
LOBO
Ohio
10 years ago
Verified Buyer
Was this review helpful to you?
Excellent Product
Being a handy man, you can install the product easily.
Jasper
Oak Point, TX
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: COULD YOU TELL ME IF THIS PUMP HAS THE PLASTIC PES, OR STAINLESS STEEL IMPELLER IN IT? THANKS
Asked by Dave 14 years ago
Add your answer
-
The last one I bought had a plastic impeller. I have not seen a stainless steel impeller in quite some time.
Was this review helpful to you?
-
Plastic impeller
Was this review helpful to you?
-
plastic impeller
Was this review helpful to you?
Q: Does it come with flange gaskets?
Asked by 14 years ago
Add your answer

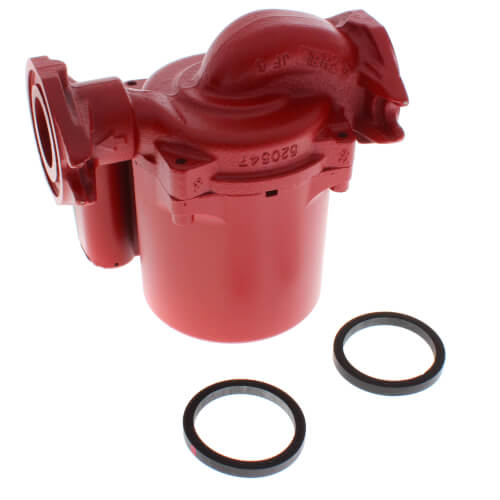

Verified Reply- PexSupply StaffA pair of flange gaskets is included with this circulator, but the bolt-on flanges need to be purchased separately.
Was this review helpful to you?
- Fred
Yes is has round flange gaskets. The old pump had a different flange a flat gasket. These are round and about 3/16 inch thick.
