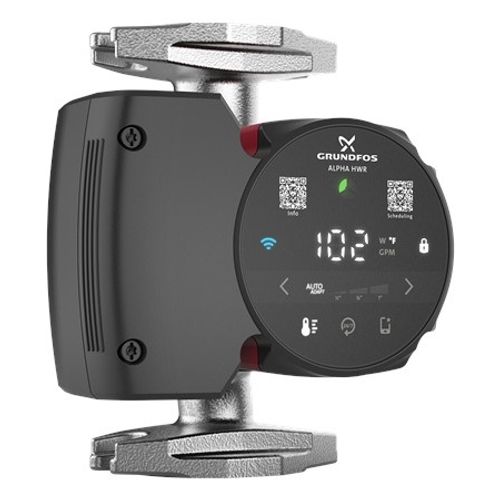

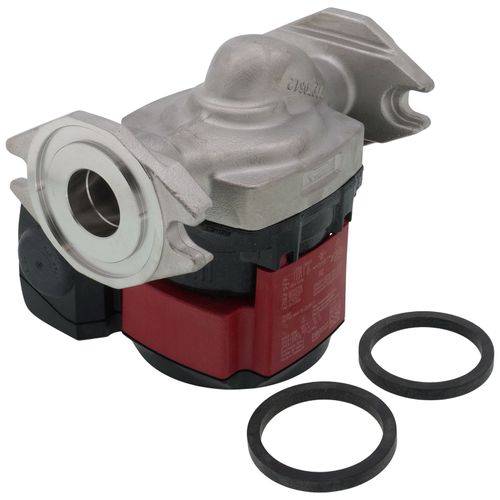

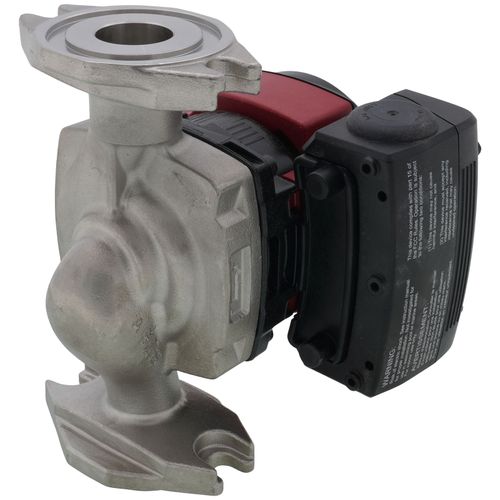

ALPHA HWR 15-29 SF/T High-Efficiency Hot Water ECM Circulator

ALPHA HWR is a high-efficiency circulator fitted with a stainless-steel housing. It is built with an ECM (Electronically Commutated Motor) for maximum performance. It is designed to circulate domestic hot water in systems with a dedicated return line. The circulator comes with built-in temperature control, eliminating the need for an external aquastat. This small, compact hot water circulation pump provides instant hot water to the homeowner and fits with tank and tankless water heaters. The ALPHA HWR meets the energy conservation standards for circulator pumps that the Department of Energy established, which will take effect in May 2028.

Features:

• High-efficiency hot water circulator for homes with dedicated return lines
• Circulator comes with built-in temperature control, eliminating the need for an external aquastat
• Dry-run protection stops the pump if water is not detected in the system
• Built-in digital timer makes it possible to schedule the pump's on/off hours, helping save energy when hot water is not required in the home
• High-efficiency platform with a permanent magnet motor (ECM) that helps reduce energy consumption by up to 80%
• AUTOADAPT functionality finds the lowest flow rate that will achieve hot water at the farthest fixture
• Temperature mode maintains the temperature without running 100% of the time
• Maintains one of the highest Energy rating in the market (215) based on the Hydraulic Institute Energy Rating
• FLOWSENSE technology helps master the flow to reduce the risk of pinholes
• Bluetooth connectivity for easy pump control and operational trend data
