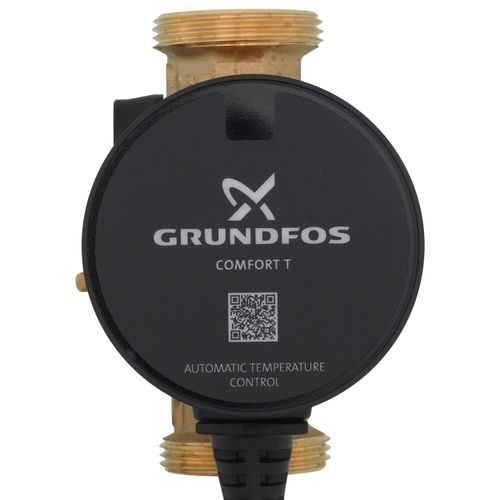

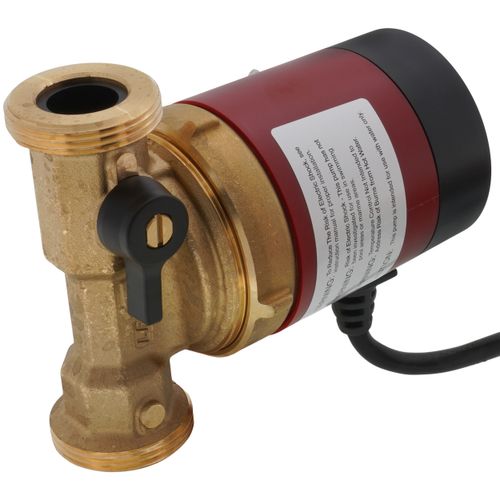

Comfort 10-16 T BU/LC Hot Water Recirculating Temperature Pump (1-1/4" NPSM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (5)
Product Highlights
Description
COMFORT 10-16 T BU/LC is high-efficiency and low energy consumption domestic hot water circulator with lead free brass housing. It is built with an ECM (Electronically Commutated Motor) for maximum performance. The pump provides instant hot water to homeowners and reduces water waste. Typical applications are water heater storage tank or water heater systems with a dedicated return line in one- or two-family homes. The pump features a Temperatur control mode that monitors water temperature and automatically adjusts its ON/OFF settings according to the highest temperature detected in the system. This ensures that the pump operates efficiently based on these adjusted ON/OFF temperatures. Temperature control mode is designed for energy-conscious households which require instant hot water continuously during day and night.
Note: Adapter Fittings Sold Separately
- 519850: 1/2" GU 125 Union Bronze Isolation Valve Pair (Threaded)
- 519852: 3/4" GU 125 Bronze Union Isolation Valve Pair (Threaded)
- 529913: 1/2" Bronze Sweat Union Set
- 529911: 3/4" GU 125 Bronze Union Flange (Sweat)
Features:
- Automatic temperature control, no manual settings required
- Reduces water heater energy consumption by saving up to 25% compared to a continuously running pump
- Designed for unlimited water hardness and robust against limescale
- Multiple installation positions, even vertical with the pump head pointing downwards
- Dry-running protection to prevent failure if system runs out of water
- Built-in temperature sensor
- Isolation valve and check valve integrated
- Insulation shell included
- Double insulated pump with line cord allows for quick installation without the need for a ground wire
Specs
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Material: | Brass |
| Type: | Dedicated |
| Connection Type: | NPSM |
| Max Head (Ft): | 5.25 |
| Phase: | 1 |
| Max Flow (GPM): | 1.45 |
| Voltage: | 115-230V |
| Speeds: | 1 |
| Temperature Range (F): | 35°F - 176°F |
| Connection Size: | 1-1/4" |
| Includes: | Line Cord |
Questions?
You May Also Need
Product Reviews
Perfect replacement
Enjoying the Hot Water Recirculating Pump
Works Great
Great product, service, and price
Product Q&A
1 QuestionQ: Does this pump have a built in thermostatic sensor control?
Asked by Ray 2 years ago
Add your answer
Verified Reply- SupplyHouseHi Ray! Yes, this pump features a built-in temperature sensor and control mode. It utilizes both internal and external temperature sensors.
