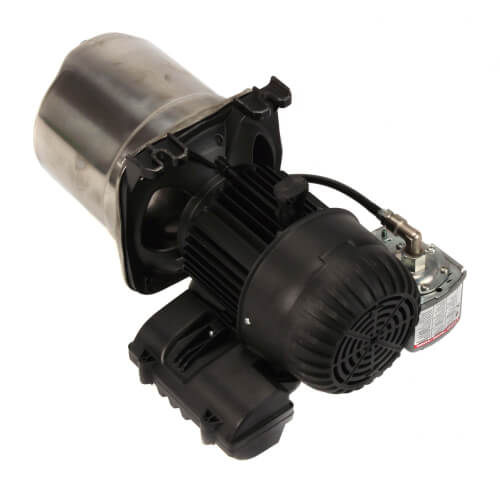

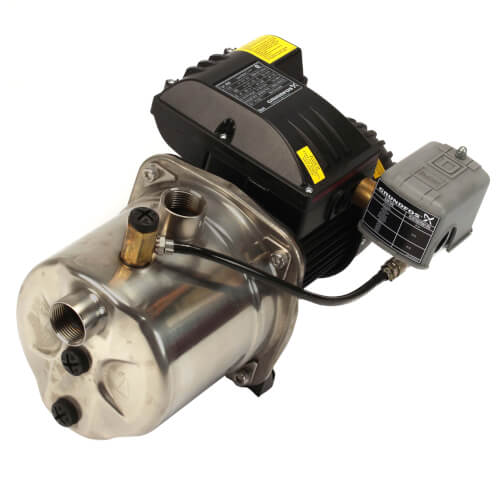

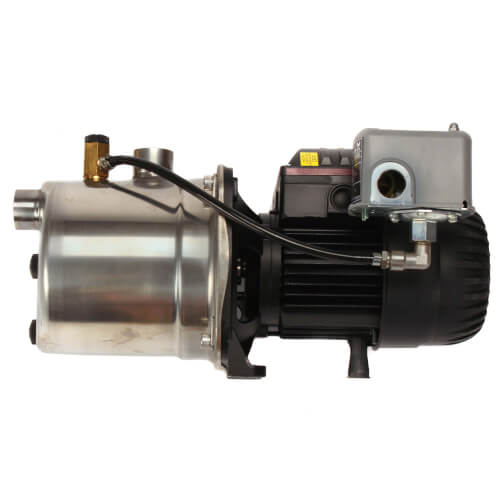

JP05S-SS Shallow Well Jet Pump, Stainless Steel (115V/230V, 1/2 HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
97855075 has been discontinued
Discontinued August 26, 2021
This product was discontinued by the manufacturer.
MANUALS (3)
This item replaces: 96430422, 96430421
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
JP PS 16-05-154 Shallow Well Jet Pump, Stainless Steel (115/230V, 1/2 HP)
Product Highlights
–
Stainless Steel
115/230V
1/2 HP
21 MAX GPM
116 MAX PSI
Description
–
Features:
- Corrosion-resistant stainless steel
- End suction, top discharge arrangement
- Technopolymer impeller
- Built-in ejector complete with clean-out port to clear blockages from nozzle
- Ceramic-carbon bellows mechanical seal ensures trouble-free operation
- High quality pressure switch.
Specs
–
| Shutoff Head (ft.): | 145' |
|---|---|
| Application: | Shallow Well |
| Type: | Jet Pump |
| Voltage: | 115/230V |
| Horse Power: | 1/2 |
| Max Flow (GPM): | 21 |
| Phase: | 1 |
| Hertz: | 60 |
| Relative Humidity: | 95% |
| Max Pressure (PSI): | 116 |
| Fluid Temperature Range: | 32°F - 95°F |
| Material: | Stainless Steel |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
3 Replacement Parts
Hose for Pressure Switch Kit
SKU: 98289931
GrundfosPressure Switch Replacement
SKU: 98296792
GrundfosShaft Seal Kit for JP055 Pumps
SKU: 98288909
Grundfos
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.67 out of 3 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
my pump had a problem with the pressure switch
The Square D switch had the terminals epoxied so they could not be used. These are the two terminals that accept the wire from the source--the two outside terminals. The way we solved the problem was to swap out the terminal block in the switch and replace it from another switch we had on hand. This was not a big deal to do-just frustrating.
Tony
Manchester Ctr, Vt
9 years ago
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy this pump again.
It is by far the quietest pump I have ever owned. It performs to all my expectations. The only thing I have a quibble with is the wiring. The color code for European devices is different than what we use in the states and there is no information in the manual stating which goes with black and white wires. I did find out which goes together and it works great.
Bob
Medford, NJ
9 years ago
Verified Buyer
Was this review helpful to you?
Very good, quiet, s.s. jet pump!
We have spring water to our home with a high amount of oxygen in the water. Cast Iron pumps rust excessively. This stainless steel pump was about the same cost and specifications and much quieter.
Mike
Western Pennsylvania
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: How many amps is this pump at 115?
Asked by Darren Lucas 9 years ago
Add your answer
Verified Reply- Supplyhouse StaffThis unit SFA is 10.3 AMPs and should be on a minimum of 12 AMP fuse.
Was this review helpful to you?
