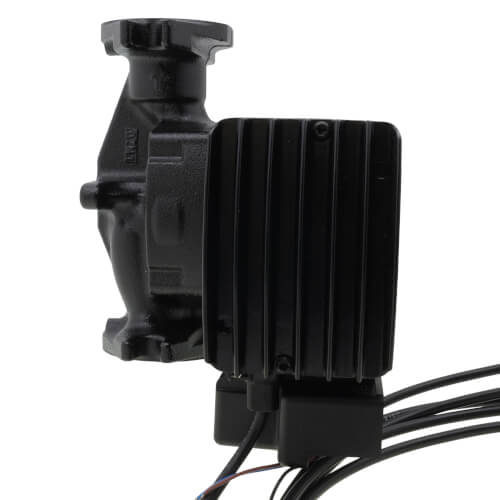

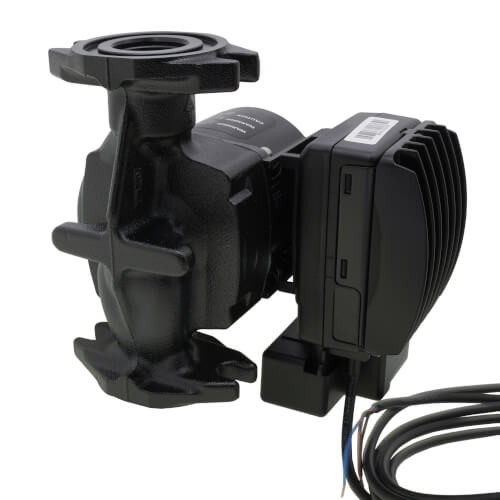

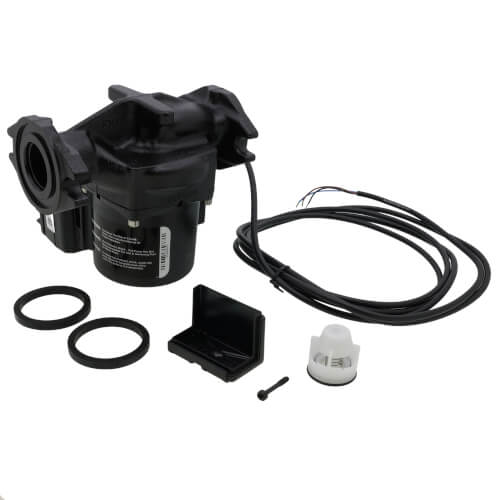

ALPHA1 26-99F, Variable Speed Circulator Pump, 1/6 HP, 115 volt
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$760.00 each
In Stock
Order by today, receive Tuesday
This item replaces: 52722552
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/6 HP
Flanged x Flanged Connection
28 MAX GPM
145 MAX PSI
120 Watts
Description
–
The Grundfos ALPHA 26-99 F is a medium sized, ECM circulator pump. It's designed for reliable circulation of liquids in residential and commercial heating and hot water recirculation systems. The pump is externally controlled via a low-voltage signal from a system controller, such as one integrated into a boiler or a building management system. In the absence of a control signal, the pump automatically operates at maximum speed to ensure continuous performance. Built for durability, the ALPHA 26-99 F materials and design are resistant to blockage caused by magnetite commonly found in hydronic systems. The unit incudes an integrated check valve for added convenience and system protection.
- 0-10V analog input control
- Pump alarm output signal for fault and status indication
- Magnetite resistant design protects the pump from harmful iron oxide found in heating systems
- High efficiency pump design and controls reduce energy consumption by up to 85%
- 360 [mNm] starting torque clears pump of system debris and sediment
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Wattage: | 120 |
| Material: | Cast Iron |
| Amperage: | 1.7 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 145 |
| Type: | Var. Speed Pump |
| Horse Power: | 1/6 |
| Max Flow (GPM): | 28 |
| Flow Range (GPM): | 0-28 |
| Max Head (Ft): | 30 |
| Head Range (ft.): | 0-30 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 2450 |
| Temperature Range (F): | 14°F to 203°F |
| Connection Size: | 1-1/2" 3/4" 1-1/4" |
| Connection Type: | Flanged x Flanged |
